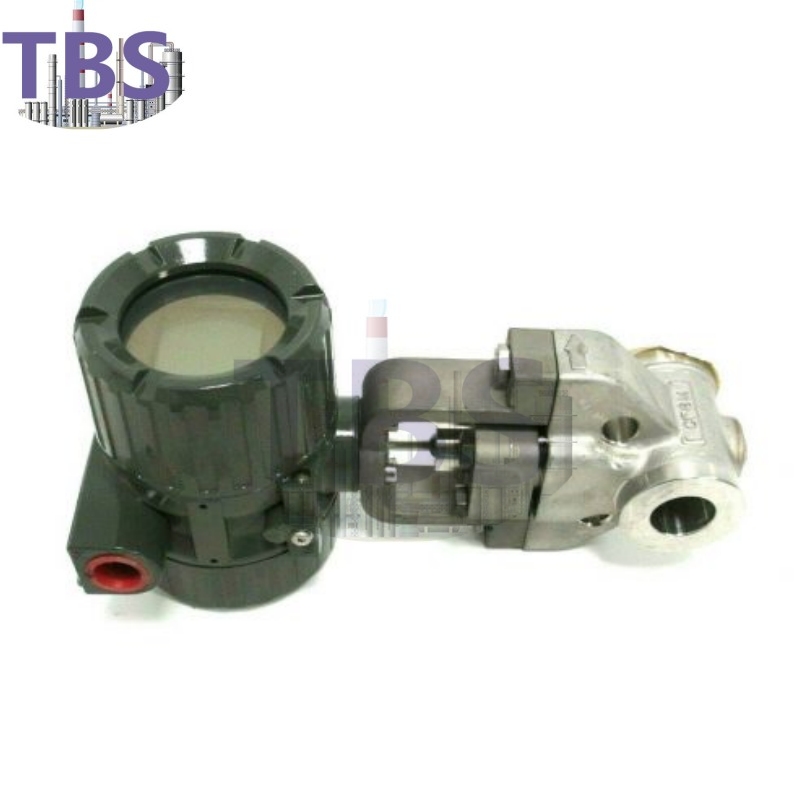

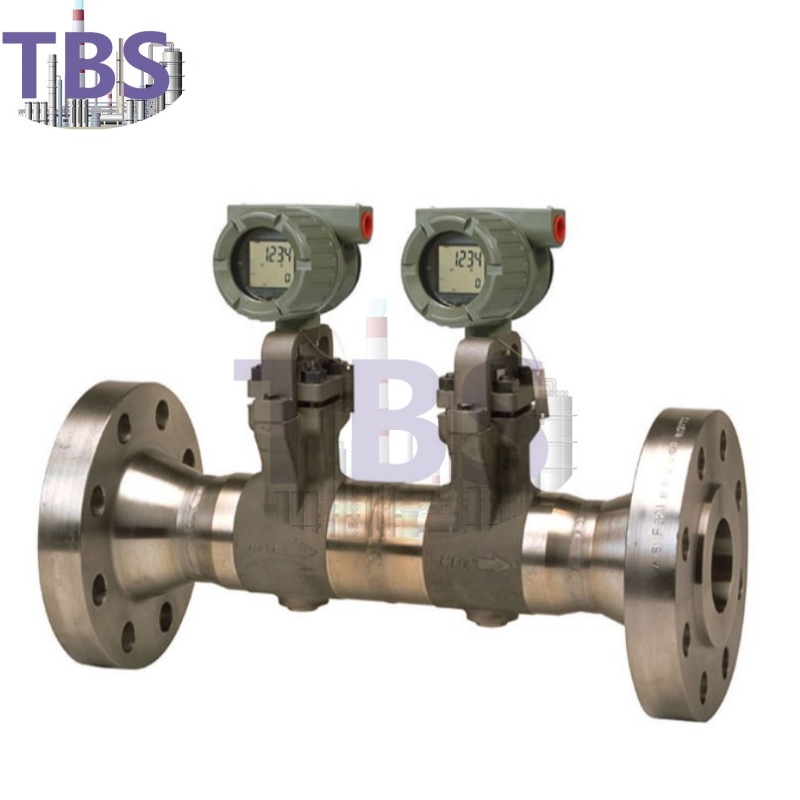

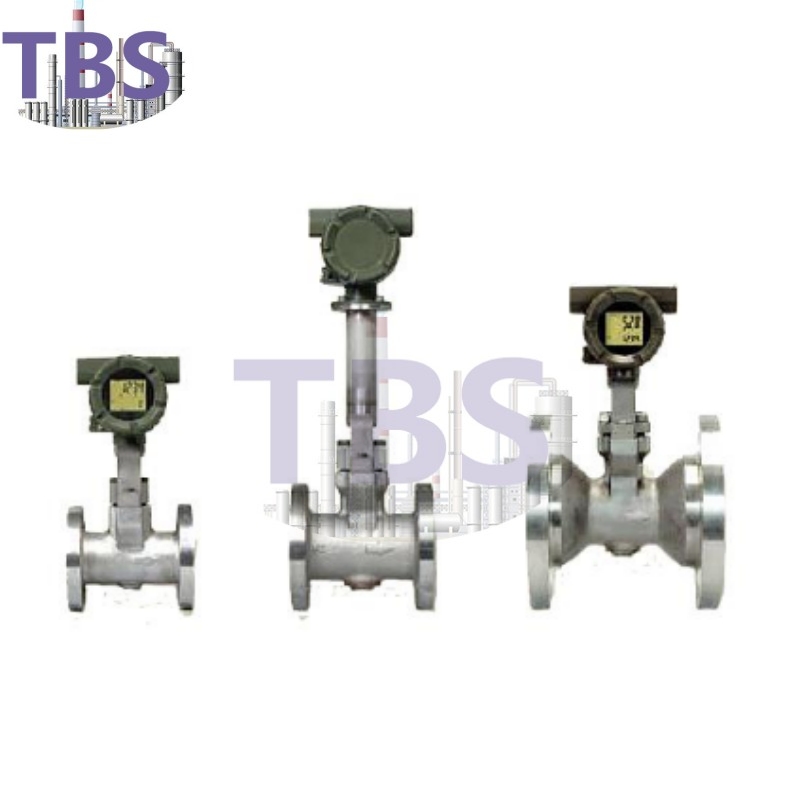

Yokogawa DY025 Vortex flowmeter

Yokogawa DY025 Vortex flowmeter


Meets NACE standards
Meets NAMUR43 standard
The maximum length of the separated cable is 30m
Clear and concise display
Simple parameter setting

Send Inquiry

Basic technical specifications


<>

Model・DY type vortex flowmeter (Integral type, remote type detector)
・DYA type remote type converter
SpecificationOptional specifications
 1 Size down: /R1
 2 Size down: /R2
Measurement FluidLiquid, gas, saturated steam, superheated steam (avoid multi-phase flow and adhesive fluid)
Process Temperature-29 to 250 °C
Process Pressure-0.1 MPa to flange rating
DiameterWaferNone
FlangeR1: 25 to 200 mm (detection unit: 15 to 150 mm)
R2: 40 to 200 mm (detection unit: 15 to 100 mm)
AccuracyLiquid± 1.0 % of reading (depends on Reynolds number)
Gas, Steam± 1.0 % of reading (depends on the flow velocity)
Output SignalAnalog output, transistor contact output (simultaneous output possible)
Communication TypeHART 7 / HART 5, BRAIN, FOUNDATION fieldbus
Explosion Protected TypeTIIS Ex d, FM Ex d / Ex ia, ATEX Ex db / Ex ia, CSA Ex d / Ex ia, IECEx Ex db / Ex ia


New features with SSP (Digital Signal Processing) technology

SSP is a part of the digital vortex flowmeter circuit. SSP can analyze the fluid condition in the digital vortex flowmeter and analyze it

The data is automatically optimally adjusted for use, and the SSP correctly detects vortices in low-flow areas, significantly improving metering

Stability. This excellent function is a digital signal processing technology pioneered by Yokogawa, Japan, which has never been available in previous vortex flowmeters.

Advanced self-diagnostics

Can identify and display use conditions such as large pipe vibrations and flow anomalies.

· High precision

± 0.75% of reading (liquid)

± 1% of reading (gas, steam)

Large temperature range

High temperature type: up to 450 ℃

Low temperature type: up to -200 ℃

Simple parameter setting

Use frequent parameter combinations in one module, thus reducing parameter setting time.

Clear and concise display

Can display traffic, cumulative traffic and self-diagnosis information at the same time

· Analog/pulse dual output

Output flow signal and pulse signal simultaneously

Alarm output

If an alarm occurs, there will be an alarm signal output.

Status output (flow switch function)

When the alarm occurs, the alarm signal is output by the contact. In addition, when the flow rate is below the set value, the signal can be output by the contact.

Compact converter

BRAIN/HART communication and panel setting buttons are available.

Sensors of the same construction can be used to measure liquids, gases and vapors.

Stainless steel sensor without moving parts, durable, safe.

· Comply with NACE standards

· Comply with NAMUR43 standard

The maximum length of the separated cable is 30m

Flameproof structure:

JIS /FM/ATEX/CSA/SAA (Flameproof/intrinsic safety) Basic performance indicators:

Flow measured body:

Liquids, gases, vapors (avoid multi-phase flow and adhesion)

· Measuring flow range:

See general specifications

Accuracy:

± 0.75% of reading (liquid), ± 1% of reading (gas, steam)

Repeatability:

± 0.2% of the reading

Calibration:

The flowmeter is water calibrated before leaving the factory

Normal working conditions:

Fluid temperature range: -40 ~ 260 ℃ (general type)

-200 ~ 100 ℃ (low temperature type, optional)

-40 ~ 450 ℃ (high temperature type, optional)

Working pressure range: -0.1Mpa (-1kg /cm2) ~ flange rating

Ambient temperature range: -40 ~ 85 ℃ (separate sensor, separate converter)

-40 ~ 85 ℃ (monotype)

-30 ~ 80 ℃ (one body with watch head)

Ambient humidity: 5 ~ 100%RH (at 40 ℃) (no condensation)

Power supply voltage: 10.5 ~ 42V DC (see the relationship between power supply voltage and load resistance)

Electrical performance: Since pulse output, alarm output and status output are using common terminals, these functions cannot be used at the same time.

Output signal: Dual output (analog and transistor contact output signals can be obtained at the same time).

In this case, refer to "Installation Instructions" for power and pulse output cable connections.

Analog output: 4 ~ 20mA DC, 2-wire system

Transistor contact output: open collector, 3-wire system

Use parameter Settings to select pulse, alarm, or status outputs

Contact rating: 30V DC, 120mA DC
