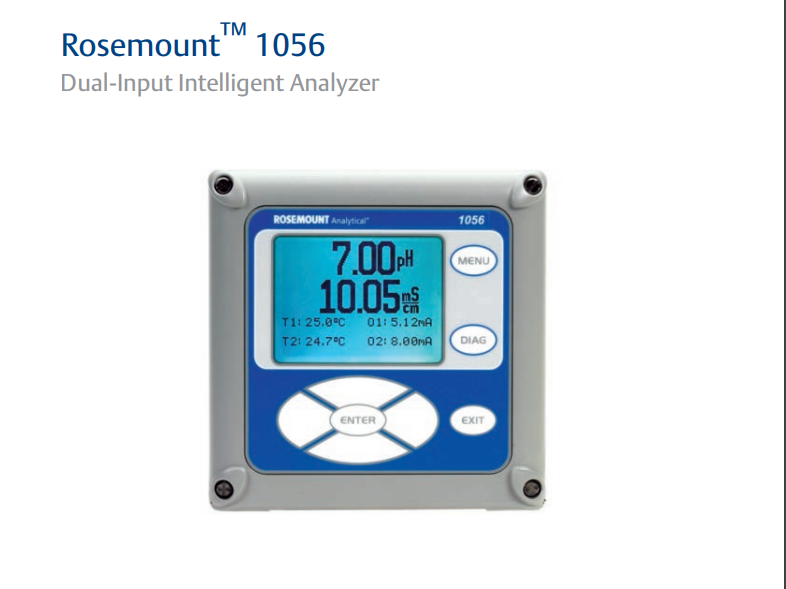

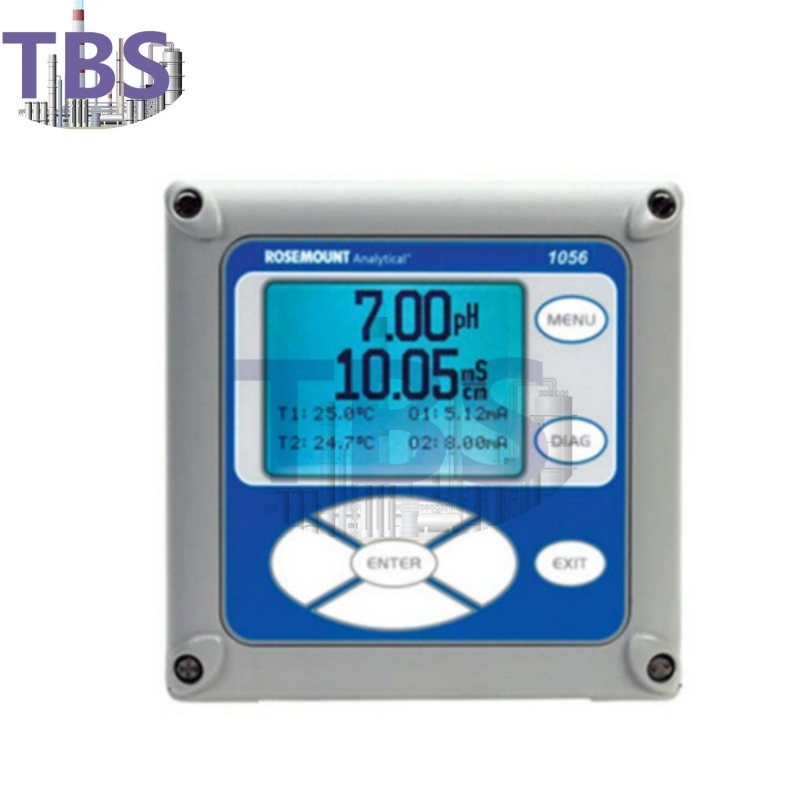

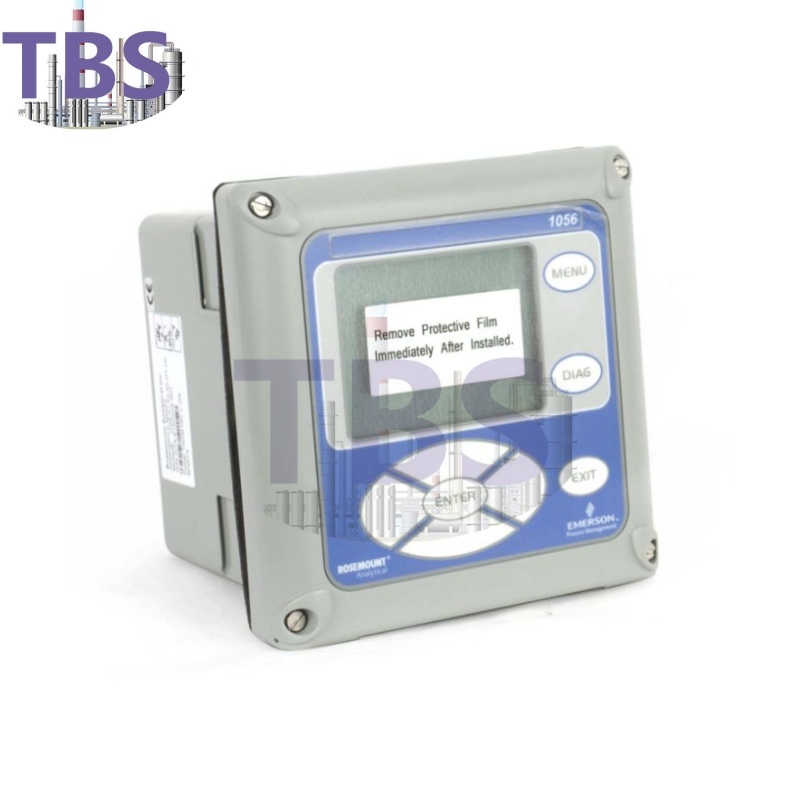

Rosemount 1056 Dual-Input Intelligent Analyzer
Dual input
0/4-20mA current output
Temperature compensated
HART & Profibus DP digital communications available
Description:
The Rosemount Analytical Model 1056 dual input analyzer offers single or dual sensor input with an unrestricted choice of dual measurements. This multi-parameter instrument offers a wide range of measurement choices supporting most industrial, commercial, and municipal applications. The modular design allows signal input boards to be field replaced making configuration changes easy.
The Model 1056 is simple to set up and operate. Menu screens for calibrating and programming are simple and intuitive. The 1056 auto-recognizes each measurement board and a quick start screen prompts users to configure each sensor loop. A high-contrast LCD provides live measurement readouts in large digits and shows up to four additional process variables or diagnostic parameters. The 1056 is available with HART and Profibus DP digital communications. HART models can communicate with the Model 375 HART handheld communicator and HART hosts, such as the AMS Intelligent Device Manager. Profibus units are fully compatible with Profibus DP networks and Class 1 or Class 2 masters.
The Model 1056 accepts single or dual sensor input. Inputs are isolated from other signal sources and earth ground to ensure clean signal inputs for any configuration. Standard 0/4-20mA current outputs can be programmed to correspond to any measurement or temperature. The unit also automatically recognizes Pt100 or Pt1000 RTDs built into sensors for temperature compensation.The Model 1056 is a multi-parameter instrument allowing users to measure pH, ORP, ISE, resistivity, conductivity, percent concentration, chlorine, oxygen, ozone, temperature, turbidity, flow, and 4-20mA current input. Sensors for the Rosemount 1056 are available as accessories. Please contact us if you are unable to find a sensor for your application or require additional information.
The basic parameters and general specifications of the Rosemount 1056 are described as follows:
1. Shell: Material is polycarbonate, protection grade is NEMA 4X/CSA 4 (IP65);
2, weight/shipping weight: (in pound integer or multiple of 0.5 kg as a weight measurement unit) 1.5 kg (3 lb) /2 kg (4 lb);
3, display: monochrome LCD display, display resolution 128×96, backlight lighting, display area 58×78 mm (2.3×3.0 inches);
4, size: Rosemount 1056 overall size 155×155×131 mm (6.10×6.10×5.15 inches); Instrument panel opening size 1/2 DIN standard, 139 x 139 mm (5.45 x 5.45 in);
5, ambient temperature and humidity: ambient temperature is 0-50℃ (32-122℉), relative humidity is 5-95%RH (non-condensing);
6, storage temperature: -20 to 60℃ (-4 to 140℉);
7, input: Rosemount 1056 connected to 1 or 2 isolated sensor input;
8, output: 2 4-20mA or 0-20mA isolated current output, output full scale adjustable, Z large load resistance of 550 ohms; Output current accuracy: ±0.05mA;
9, Power supply: Rosemount 1056 selection code -01:115/230 ±15%VAC, 50/60Hz, power consumption of 10 watts;
10, selection code -02:20-30VDC, power consumption 15 watts;
11, selection code -03:85-265VAC, 47.5-65.0Hz, general power supply, power consumption 15 watts (selection code -02 and -03 with 4 configurable relays);
12, alarm: 4 alarm relays can be used to test parameters or process temperature alarm, but also can be configured into instrument fault alarm. Each relay is set individually and can be configured as a timer. Note: Rosemount 1056 has an alarm relay only if the electrical source code is selected as -02 (20-30VDC) or -03 (85-265VAC).
13, terminal rating requirements: power cable (3 core) wire gauge 24-12AWG; Input cable wire gauge 26-16AWG; Output cable (2 core) Wire gauge 24-16AWG; Alarm cable wire gauge 24-12 AWG (electrical source code -02 or 03).
