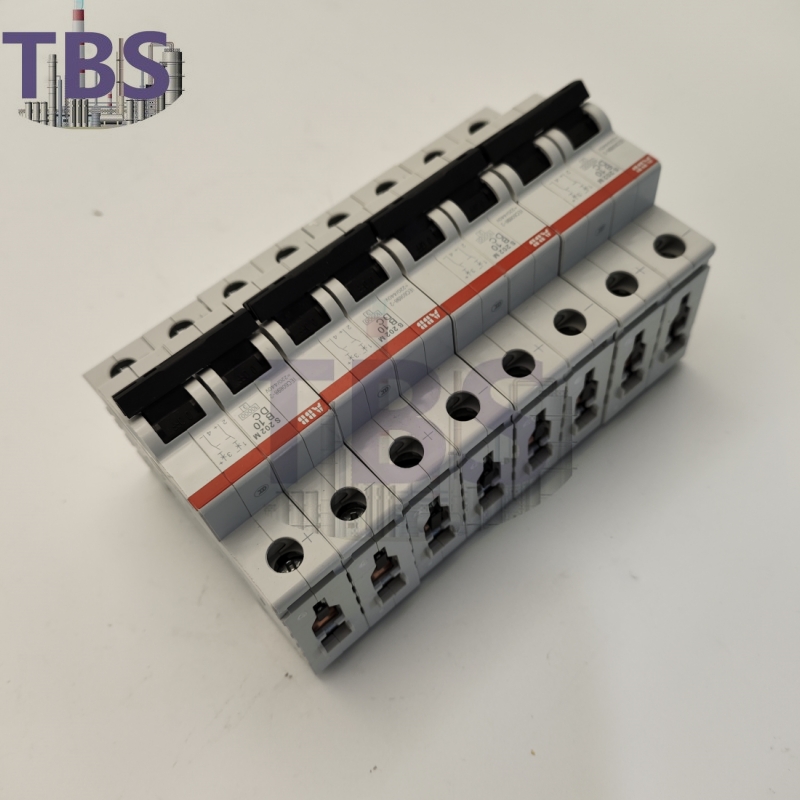

ABB S202M-C10DC miniature circuit breaker

ABB S202M-C10DC miniature circuit breaker


Extended Product Type:S202M-C10DC
Product ID:2TAZ112200R0104
Catalog Description:S202M-C10DC Miniature Circuit Breaker - 2P - C - 10 A
Long Description:Miniature Circuit Breaker - S200MDC - 2P - C - 10 A

Send Inquiry

Technical

    • Standards:

    • IEC/EN 60898-2
      GB 10963
      IEC/EN 60947-2
      GB 14048


    • Tripping Characteristic:

    • C


    • Rated Voltage (Ur):

    • 440 V


    • Rated Operational Voltage:

    • 440 V DC


    • Rated Insulation Voltage (Ui):

    • 440 V


    • Rated Impulse Withstand Voltage (Uimp):

    • 4 kV


    • Input Voltage Type:

    • DC


    • Rated Current (In):

    • 10 A


    • Rated Short-Circuit Capacity:

    • (400 V) 10 kA


    • Rated Ultimate Short-Circuit Breaking Capacity (Icu):

    • (440 V DC) 10 kA


    • Rated Conditional Short-Circuit Current (Inc):

    • (400 V) 10 kA


    • Frequency (f):

    • 0...0 Hz


    • Rated Frequency (f):

    • 0-0 Hz


    • Power Loss:

    • 3.38 W


    • Energy Limiting Class:

    • 3


    • Number of Poles:

    • 2


    • Number of Protected Poles:

    • 2


    • Overvoltage Category:

    • III


    • Release Type:

    • C


    • Options Provided:

    • DC application


    • Accessories Available:

    • Yes


    • Connecting Capacity:

    • Flexible 0 ... 25 mm²
      Rigid 0 ... 35 mm²image.png

      Classifications


      ETIM 8:

      EC000042 - Miniature circuit breaker (MCB)


      ETIM 9:

      EC000042 - Miniature circuit breaker (MCB)


      WEEE Category:

      5. Small Equipment (No External Dimension More Than 50 cm)


      WEEE B2C / B2B:

      Business To Business


      CN8:

      85362010


      eClass:

      V11.0 : 27141901


      Object Classification Code:

      F
