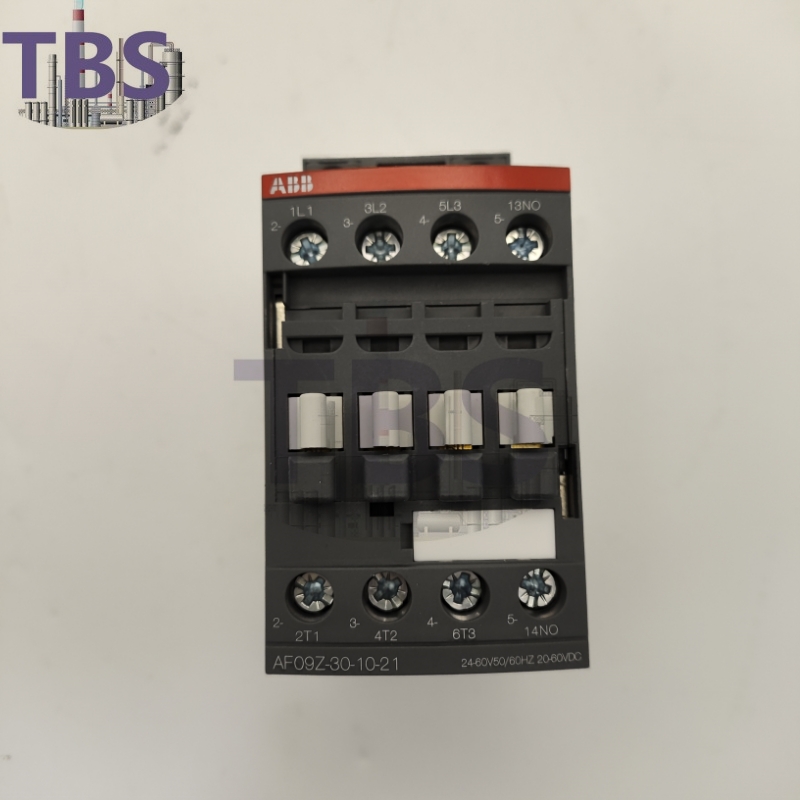

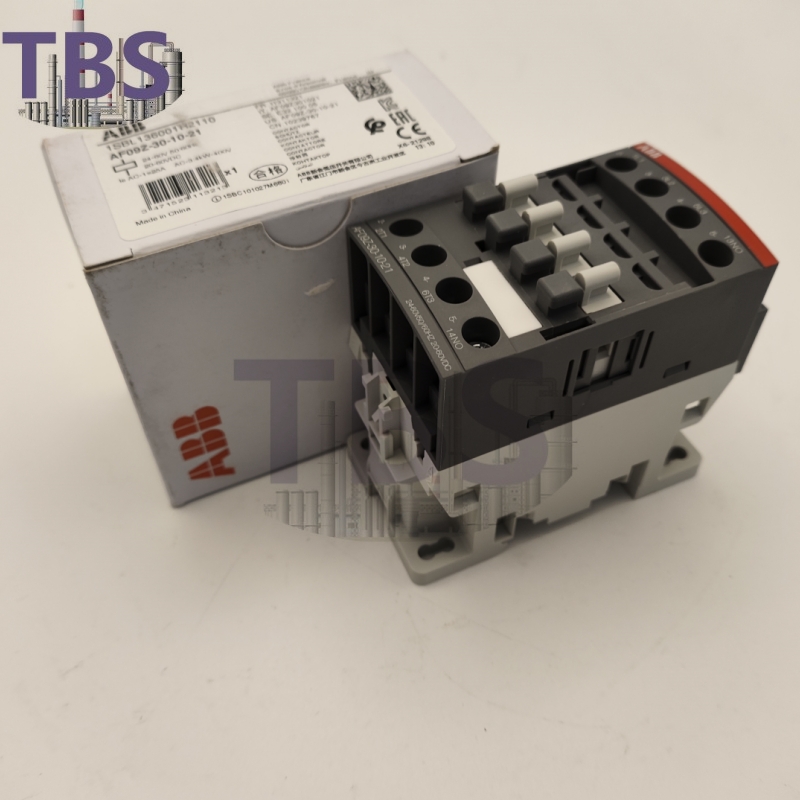

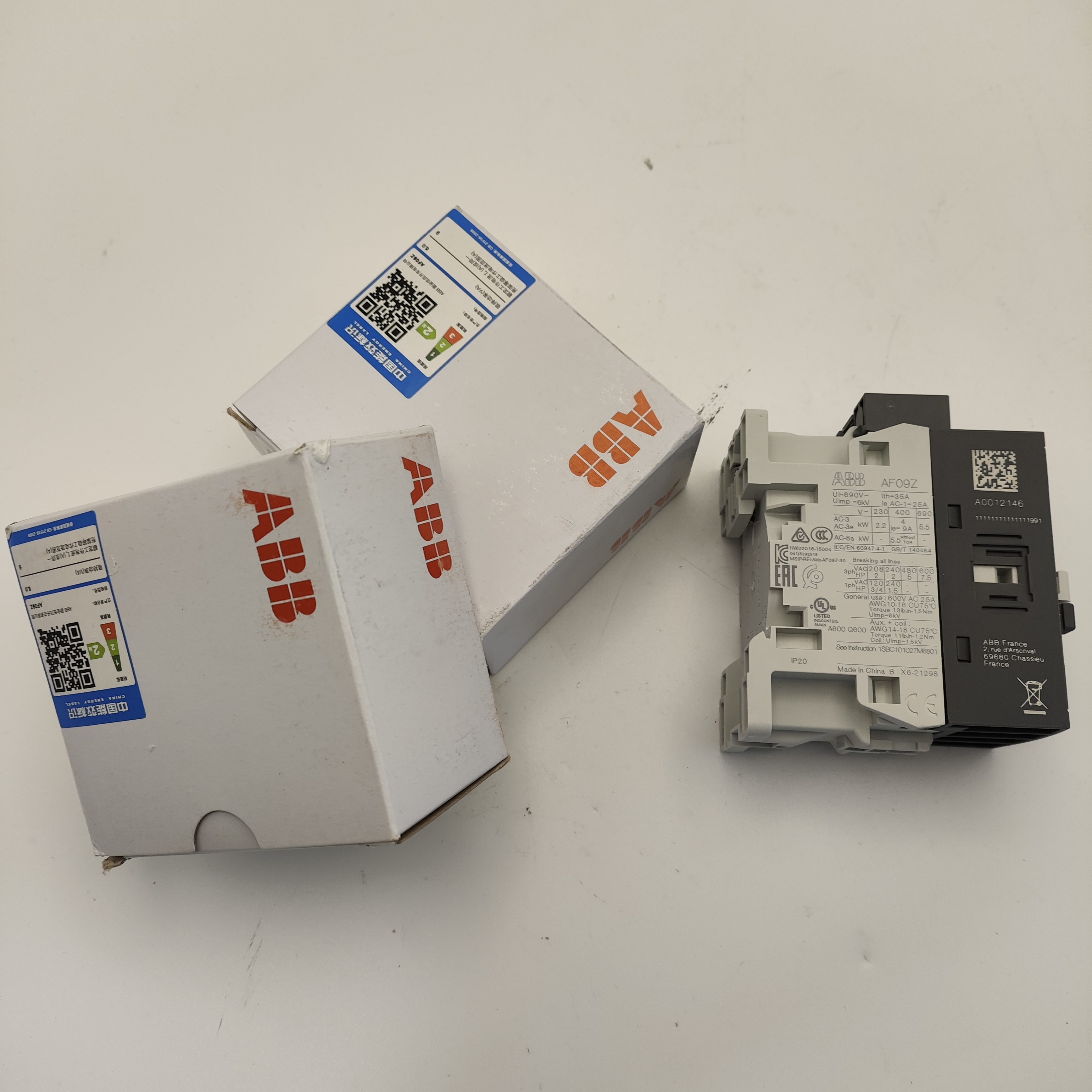

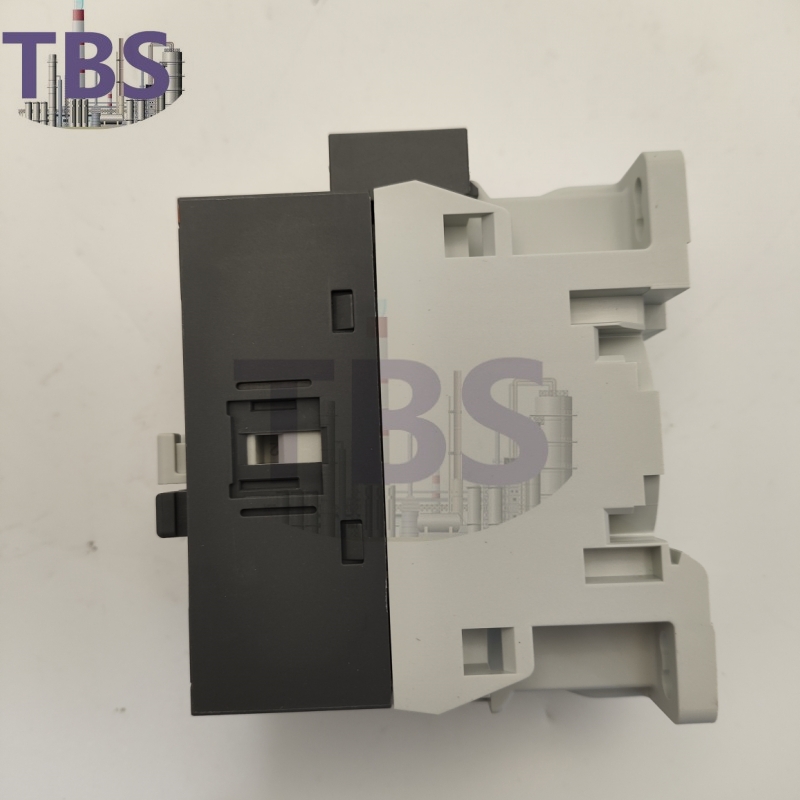

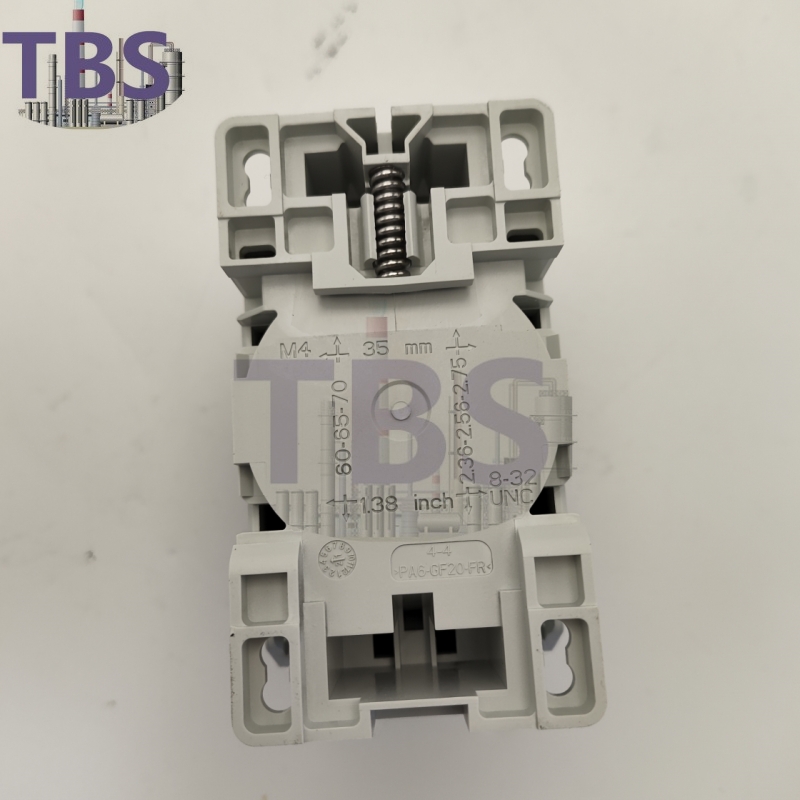

ABB contactor AF09Z-30-10-21

ABB contactor AF09Z-30-10-21

Product Net Width:45 mm Product Net Depth / Length:77 mm Product Net Height:86 mm Product Net Weight:0.31 kg

Send Inquiry


The AF09Z-30-10-21 is a 3 pole - 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 4 kW / 400 V AC (AC-3) or 5 hp / 480 V UL and switching power circuits up to 25 A (AC-1) or 25 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.


Technical



    • Number of Main Contacts NO:

    • 3


    • Number of Main Contacts NC:

    • 0


    • Number of Auxiliary Contacts NO:

    • 1


    • Number of Auxiliary Contacts NC:

    • 0


    • Standards:

    • IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1


    • Rated Operational Voltage:

    • Auxiliary Circuit 690 V
      Main Circuit 690 V


    • Rated Frequency (f):

    • Auxiliary Circuit 50 / 60 Hz
      Control Circuit 50 / 60 Hz
      Main Circuit 50 / 60 Hz


    • Conventional Free-air Thermal Current (Ith):

    • acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 35 A
      acc. to IEC 60947-5-1, Θ = 40 °C 16 A


    • Rated Operational Current AC-1 (Ie):

    • (690 V) 40 °C 25 A
      (690 V) 60 °C 25 A
      (690 V) 70 °C 22 A


    • Rated Operational Current AC-3 (Ie):

    • (415 V) 60 °C 9 A
      (440 V) 60 °C 9 A
      (500 V) 60 °C 9.5 A
      (690 V) 60 °C 7 A
      (380 / 400 V) 60 °C 9 A
      (220 / 230 / 240 V) 60 °C 9 A


    • Rated Operational Current AC-3e (Ie):

    • (415 V) 60 °C 9 A
      (440 V) 60 °C 9 A
      (500 V) 60 °C 9.5 A
      (690 V) 60 °C 7 A
      (380 / 400 V) 60 °C 9 A
      (220 / 230 / 240 V) 60 °C 9 A
