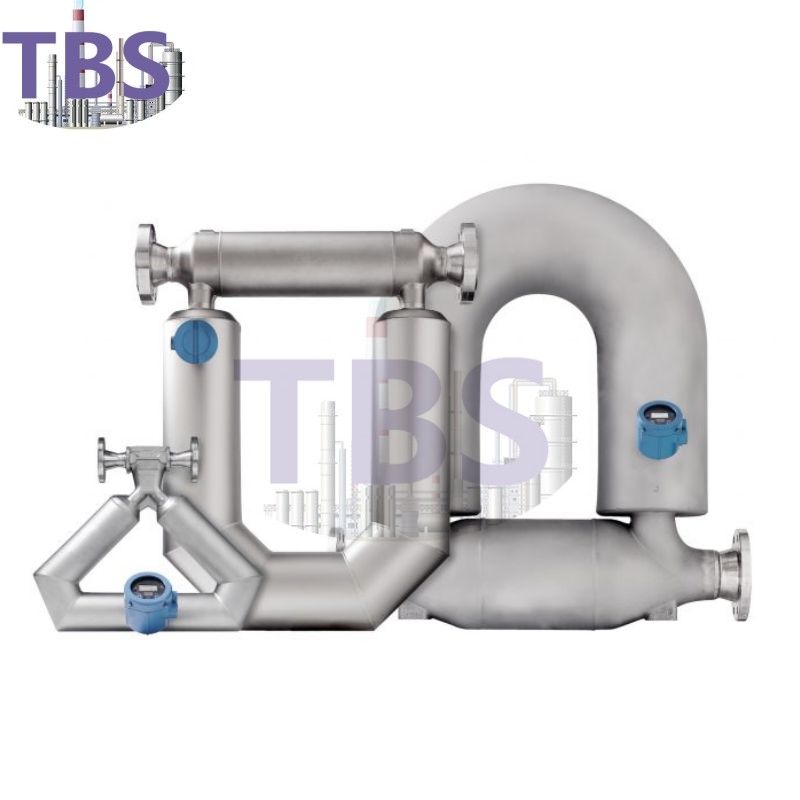

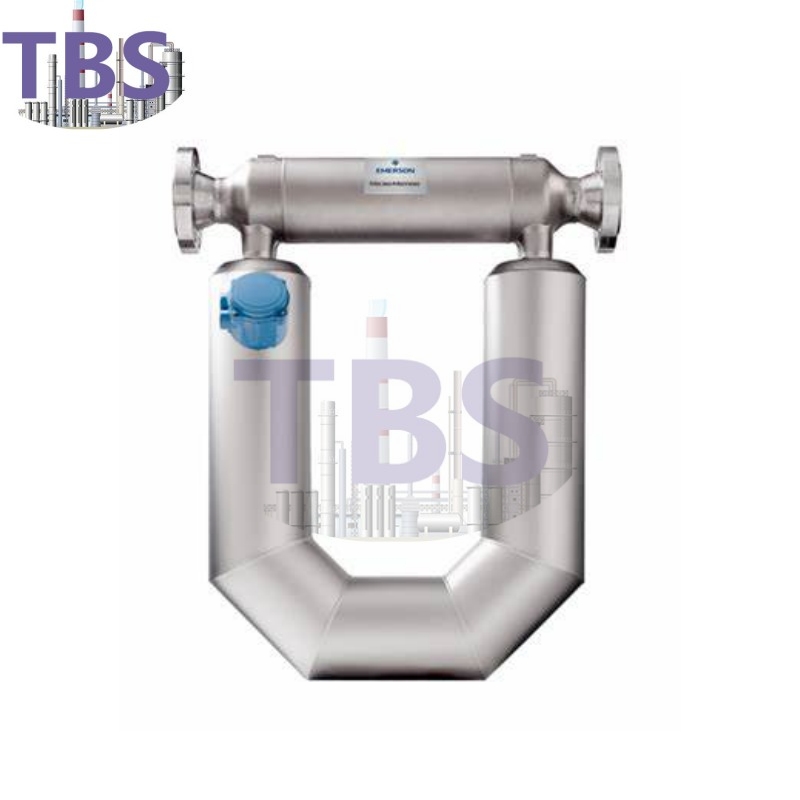

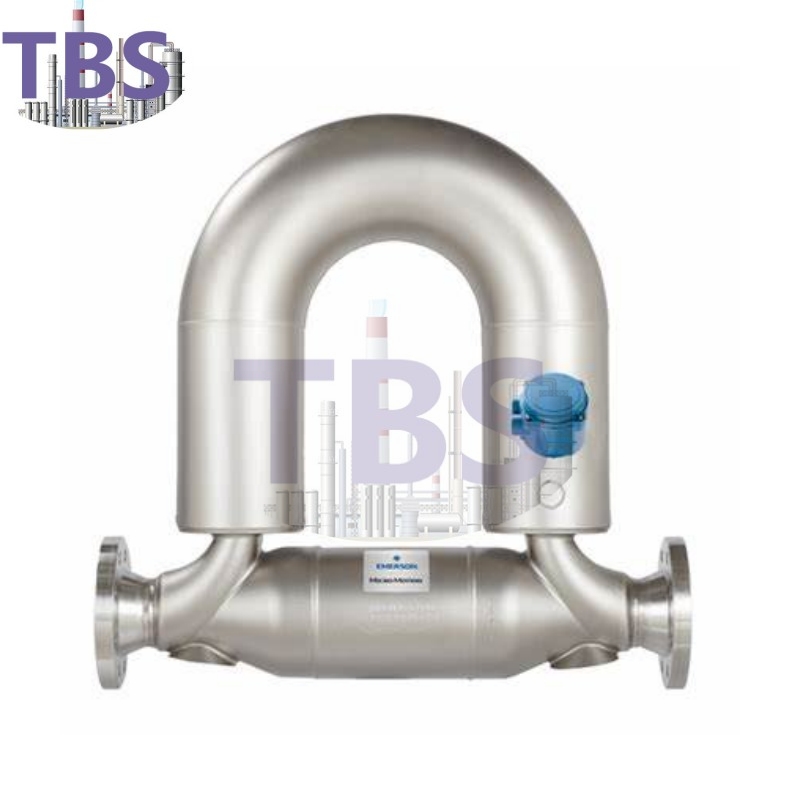

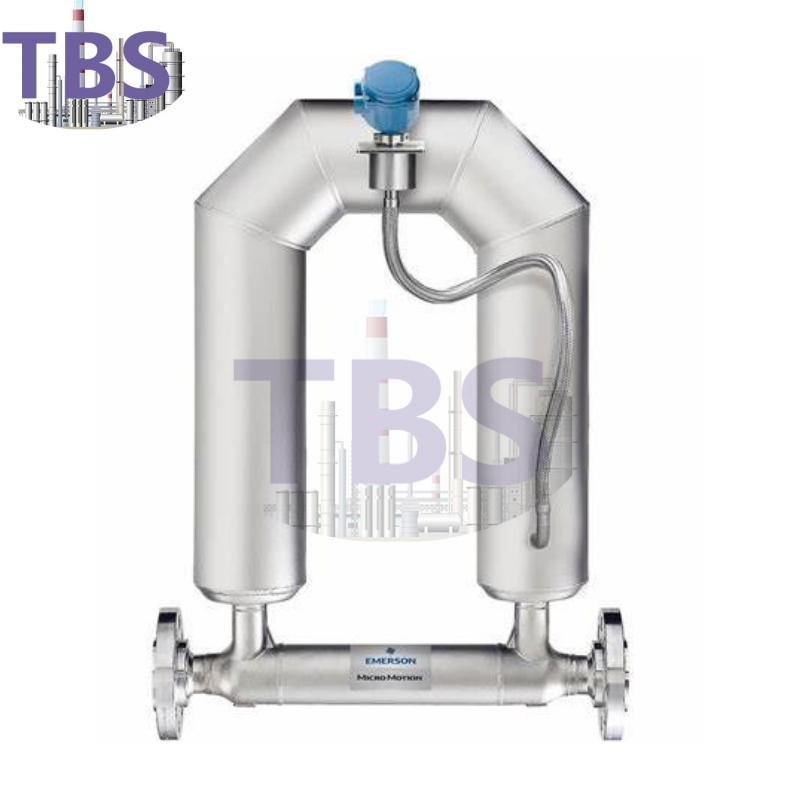

Micro Motion ELITE CMF300M Coriolis Meter, 3 Inch (DN80), 316L Stainless Steel

Micro Motion ELITE CMF300M Coriolis Meter, 3 Inch (DN80), 316L Stainless Steel


Interact with our 3D model to learn more about our ELITE Coriolis Flow and Density Meters
Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
Get unparalleled measurement sensitivity and stability from this uniquely designed meter

Send Inquiry


Specifications

  • Mass flow accuracy (Liquid)

  • ±0.10% of rate (standard)±0.05% of rate (optional)

  • Mass flow repeatability (Liquid)

  • ±0.05% of rate (standard)±0.025% of rate (optional)

  • Volume flow accuracy (Liquid)

  • ±0.10% of rate (standard)±0.05% of rate (optional)

  • Volume flow repeatability (Liquid)

  • ±0.05% of rate (standard)±0.025% of rate (optional)

  • Mass flow accuracy (Gas)

  • ±0.35% of rate

  • Mass flow repeatability (Gas)

  • ±0.20% of rate

  • Density accuracy (Liquid)

  • ±0.0005 g/cm3 (±0.5 kg/m3) (standard)±0.0002 g/cm3 (±0.2 kg/m3) (optional)

  • Density repeatability (Liquid)

  • ±0.0002 g/cm3 (±0.2 kg/m3) (standard)±0.0001 g/cm3 (±0.1 kg/m3) (optional)

  • Temperature accuracy

  • ±1 °C ±0.5% of reading

  • Sensor maximum working pressure

  • 1,730 psig (119 barg)

  • Meter approvals, calibrations, and certifications


  • •UL
    •CSA
    •IECEx
    •NEPSI
    •ATEX
    •Ingress Protection
    •EMC effects

Features

  • Get unparalleled measurement sensitivity and stability from this uniquely designed meter

  • Gain real-time and in-process measurement integrity assurance with Smart Meter Verification

  • Realize unmatched flow and density measurement performance in your most challenging liquid, gas and slurry applications

  • Achieve superb measurement confidence with the highest immunity to fluid, process and environmental effects

  • Improve scalability with a broad array of application coverage including hygienic, cryogenic and high-pressure

  • Implement the widest process-measurement range – -400°F to 662°F (-240°C to 350°C) and up to 6,000 psig (414 barg)

  • Widest range of meter approvals and certifications, including; CSA, ATEX, NEPSI, IECEx, Ingress Protection 66/67, SIL2 and SIL3, marine, and custody transfer approvals

  • Choose from models available in 316L Stainless Steel, C-22 nickel alloy and super-duplex materials

  • Interact with our 3D model to learn more about our ELITE Coriolis Flow and Density Meters
