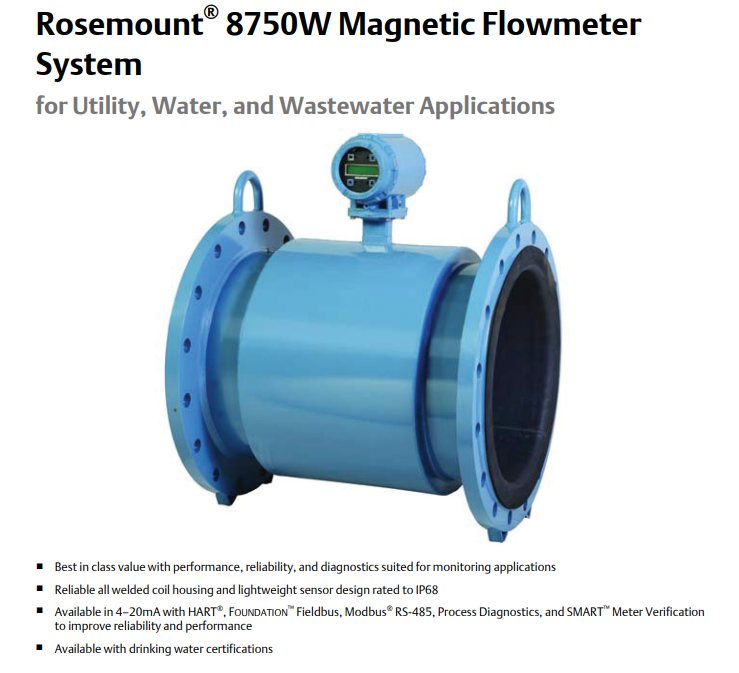

Rosemount 8750W Magnetic Flow Meters

Rosemount 8750W Magnetic Flow Meters


Water, wastewater & utility applications
Available in flanged & wafer styles
Polyurethane, PTFE & Neoprene liner
Fully tested and ready to install

Send Inquiry


Description



The Rosemount 8750W magnetic flow meter brings together performance, reliability and intelligent diagnostics to create a superior solution for water, wastewater, and utility flow measurement.

Available in sizes ranging from 1/2 to 48 inches, the 8750W features fully welded construction to withstand vibration and dual-compartment transmitter housing to keep electronics isolated from moisture and contamination. This robust design provides the reliability and accuracy needed to keep important processes running.

The 8750 includes a field or wall mounted transmitter for fast, intuitive, and easy configuration. The field mount Rosemount 32ES transmitter includes die cast aluminum housing for excellent reliability. It is available with an optional backlit two line by 16 character local operator interface, and the transmitter can be configured by optical switches to simplify adjustments without removing the cover.

The wall mount Rosemount 12ES transmitter features an easy to use operator interface and the Rosemount magmeter diagnostics. The intuitive 15 button keypad provides instant access to the most commonly used functions, and the 2 line by 20 character display provides clear indication.

The Rosemount 8750W uses wafer or flanged process connections. Flanged sensors are fabricated from stainless and carbon steel and welded to provide a hermetic seal that protects against moisture and other contaminants.

The flangeless design of the wafer sensor makes it an economical, compact, and lightweight alternative to flanged models. Alignment spacers provided with every sensor assist with centering the sensor in the process line making installation easier.


Specifications

  • Line Size

  • 0.5" – 48" (15 mm – 1200 mm)

  • Liner Material

  • PTFE, Neoprene

  • Electrode Material

  • Stainless Steel, Nickel Alloy

  • Flange Standard

  • ANSI, EN, GB , AS4087, AS2129, JIS , AWWA

  • Flange Rating

  • Up to 300# / PN40 / 4.0Mpa / PN35 / Table E / 10K / Class D

  • Accuracy

  • Standard 0.5%; Optional High Accuracy 0.25%

  • Diagnostics

  • Empty Pipe, Grounding/Wiring Detection, High Process Noise, Coated Electrode Detection, Smart Meter Verification

  • Transmitter Output

  • 4-20 mA Digital Electronics (HART Protocol), Modbus RS485

Features

  • Maximize uptime with dual-compartment transmitter housing that isolates electronics from moisture and contamination

  • Rely on robust, fully welded construction designed to withstand sustained vibration

  • Confirm meter calibration without interrupting the process using continuous meter verification

  • Perform easy repairs in the field without the need to replace the entire meter with a replaceable terminal block

  • Advanced diagnostic capabilities and printed reports verify meter performance for compliance with regulatory agencies

  • Simplify configuration and accessibility with an easy-to-use Local Operator Interface
