Rosemount 8800 Series Vortex Flow Meters

Rosemount 8800 Series Vortex Flow Meters


Wafer or flange style models
HART­ & Foundation­ Fieldbus Protocols
MultiVariable output option
1 to 12in meter sizes

Send Inquiry

Description

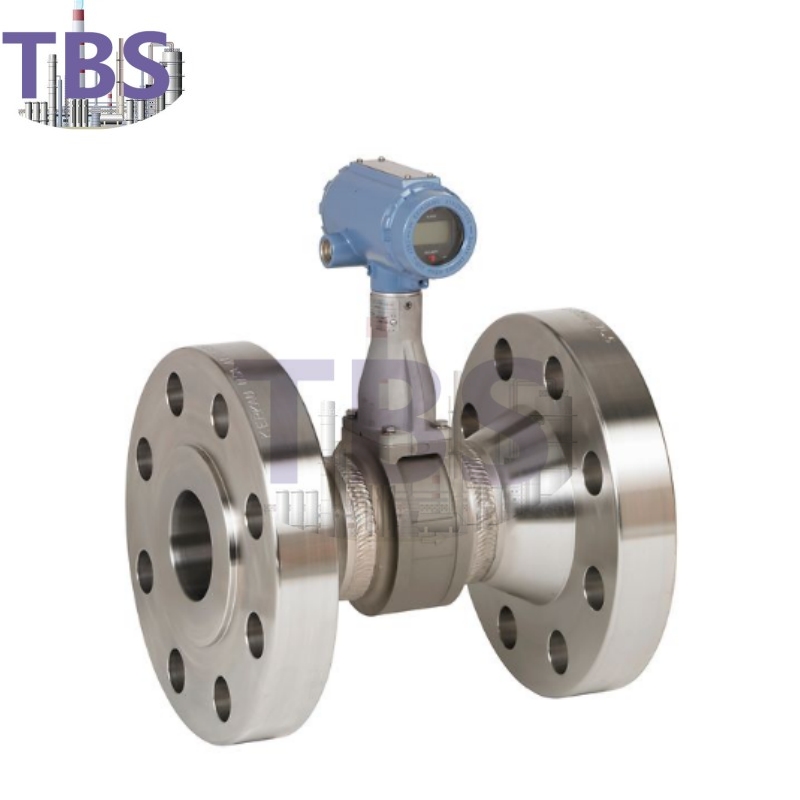

The Rosemount 8800D Series Vortex flow meter is available in wafer, flanged, reducer flange, dual sensor, and high pressure designs. The all-welded non-clog design on the Rosemount 8800D Series Vortex flow meter eliminates impulse lines, ports and gaskets which improve reliability. Mass balancing of the sensor system and the Patented Adaptive Digital Signal Processing (ADSP) provide the meters vibration immunity.

The unique isolated sensor design on the Rosemount 8800D Series Vortex flow meter allows sensor replacement without breaking the process seal. All line sizes use the same sensor design allowing a single spare to serve every meter. Troubleshooting with the Rosemount 8800D Series Vortex flow meter is simple through device diagnostics and enables field verification of the meter electronics and sensor without shutting down the process.

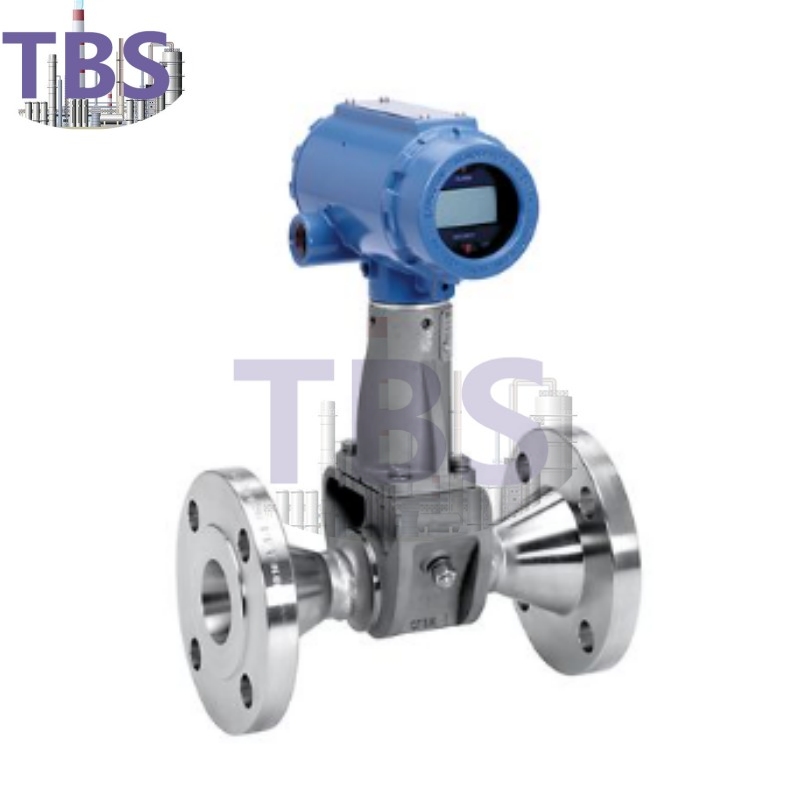

The Rosemount 8800D Series Vortex flow meters include the Reducer Vortex. This meter extends the measurable flow range at a reduced cost. The Reducer eliminates field assembly and welding of separate reducers and piping which can decrease installation costs by as much as 50%. By incorporating the Reducer ™ Vortex the low-end measurable flow range is doubled. The meter is available as a flanged design from 1 to 12" in stainless steel and nickel alloy and also features Foundation fieldbus functionality.

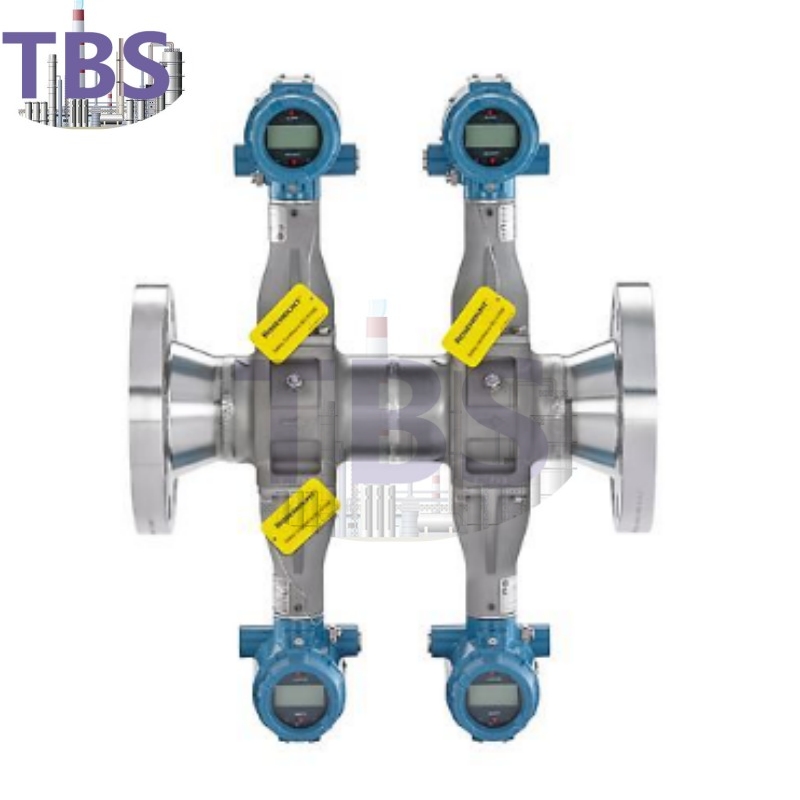

The Rosemount 8800D Series Vortex flow meter is available as a dual sensor meter; it is an ideal solution where redundant flow signals are required. The Rosemount Dual Vortex meter is constructed of two complete vortex meters: sensor, electronics and shedder bar. The Rosemount 8800D meters are welded together and the flow is calibrated to provide an accurate, single, flow meter with two independent flow measurements.

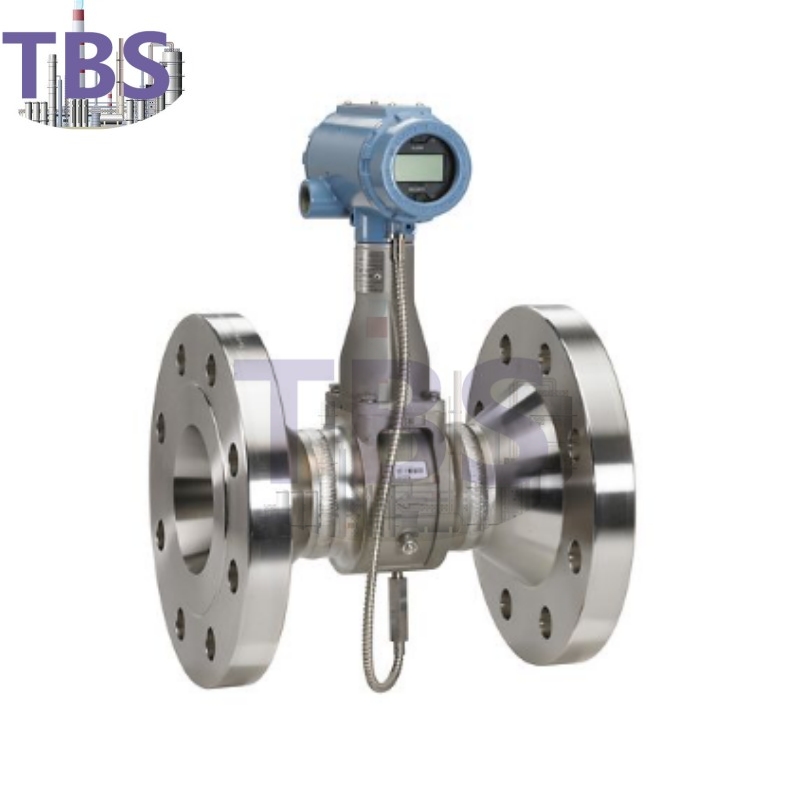

The Rosemount 8800D Series Vortex flow meters are available with an optional MultiVariable output and temperature compensated mass flow for saturated steam. The MultiVariable vortex design incorporates the temperature sensor into the meter using the shedder bar as a thermowell, isolating the vortex and temperature sensor from the process for easy verification and replacement. The temperature compensated mass flow is derived from the density calculation from the measured process temperature. The Rosemount 8800D meter performance is improved in saturated steam due to the fact that the electronics will be compensating for changes in the process temperature.

The Rosemount 8800D Series Vortex flow meters with optional MultiVariable output can map independent variables to an analog output, pulse output or HART burst variables. These Rosemount 8800D meters can also be integrated with a Rosemount Flow computer for additional functionality that includes:

  • Remote communications

  • Heat calculations

  • Remote totalization

  • Peak demand calculation

  • Data logging capabilities

Specifications

  • Flow Meter Accuracy

  • ± 0.70% of mass flow rate in water using 8800 MultiVariable (MTA/MCA option)
    ± 2% of mass flow in steam using 8800 MultiVariable (MTA/MCA option)
    ± 1.3% of rate at 30 psia through 2,000 psia in steam using 8800 MultiVariable (MPA option)
    ± 1.2% of rate at 150 psia in steam using 8800 MultiVariable (MCA option)
    ± 1.3% of rate at 300 psia in steam using 8800 MultiVariable (MCA option)
    ± 1.6% of rate at 800 psia in steam using 8800 MultiVariable (MCA option)
    ± 2.5% of rate at 2,000 psia in steam using 8800 MultiVariable (MCA option)
    ± 0.65% of volumetric rate for liquids (uncompensated)
    ± 1% of volumetric rate for gas and steam (uncompensated)

  • Turndown

  • 38:1

  • Output

  • 4-20 mA with HART® 5 or 7
    4-20 mA with HART® 5 or 7 and scalable pulse output
    FOUNDATION fieldbus ITK6 with 2 Analog Input blocks, 1 Backup Link Active Scheduler function block, 1 Integrator function block, and 1 PID function block
    Modbus RS-485 with device status and 4 variables

  • Wetted Material

  • Stainless Steel; 316 / 316L and CF3M
    Nickel Alloy; C-22 and CW2M
    High Temp Carbon Steel; A105 and WCB
    Low Temp Carbon Steel; LF2 and LCC
    Duplex; UNS S32760 and 6A
    Consult factory for other wetted material

  • Flange Options

  • ANSI Class 150 to 1500
    DIN PN 10 to PN 160
    JIS 10K to 40K
    Flanges are available in a variety of facings
    Consult factory for additional flange ratings

  • Operating Temperatures

  • -330°F to 800°F (-200°C to 427°C)

  • Line Size

  • Flanged: 1/2" - 12" (15 - 300 mm)
    Wafer: 1/2" - 8" (15 - 200 mm)
    Dual: 1/2" - 12" (15 - 300 mm)
    Reducer: 1" - 14" (25 - 350 mm)

Features

  • An isolated sensor allows for online replacement without breaking the process seal

  • Increase plant availability and eliminate potential leak points with a unique gasket-free meter body design

  • Eliminate downtime and maintenance costs associated with plugged impulse lines with a non-clog meter body design

  • Achieve vibration immunity with a mass balanced sensor and Adaptive Digital Signal Processing with visual filtering

  • A standard internal signal generator included in every meter simplifies electronics verification

  • All meters arrive pre-configured and hydrostatically tested, making them ready and easy to install

  • Simplify SIS compliance with available dual and quad Vortex flow meters

  • Detect liquid to gas phase change using Smart Fluid Diagnostics
