Rosemount 1199 Diaphragm Seal System

Rosemount 1199 Diaphragm Seal System


Similar products have excellent performance and accuracy up to 0.025%
A flow transmitter in industry that provides a flow percentage reading
In the industry to achieve the first in the actual process conditions to maintain 10 stability
Super module design platform with variable specifications

Send Inquiry

Introduction:

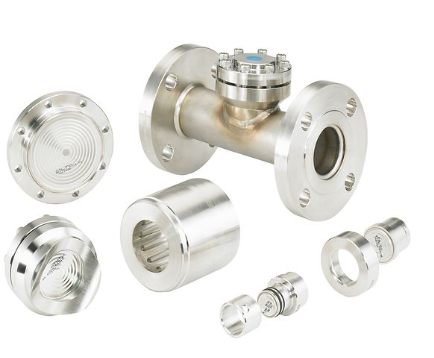

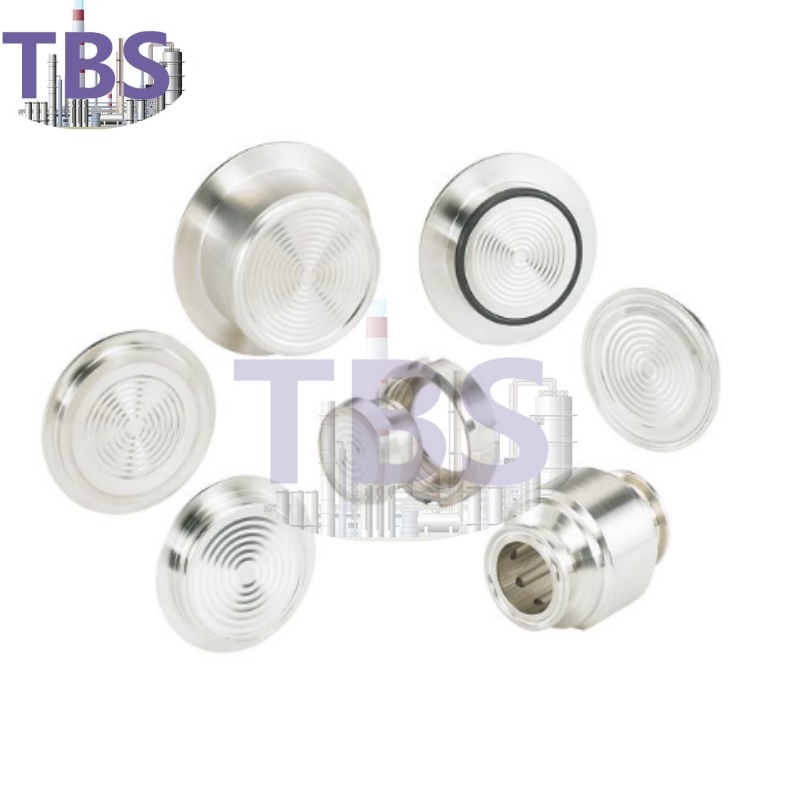

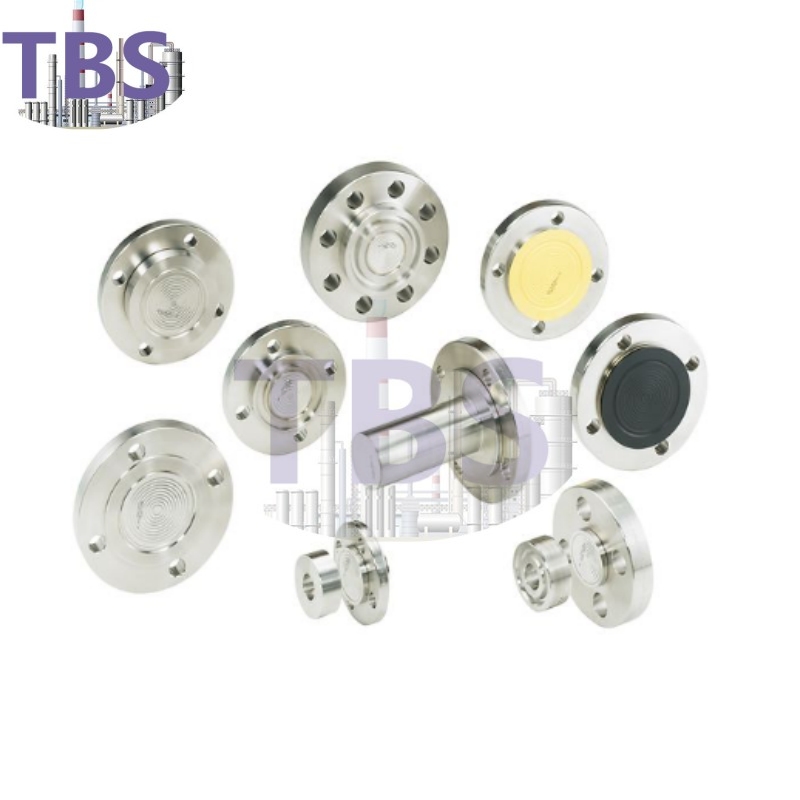

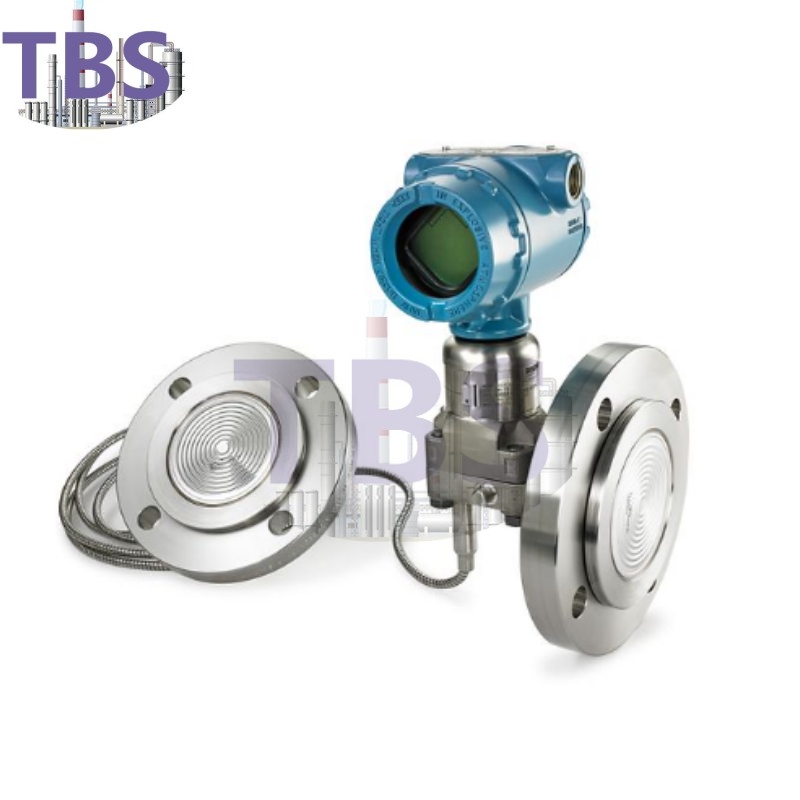

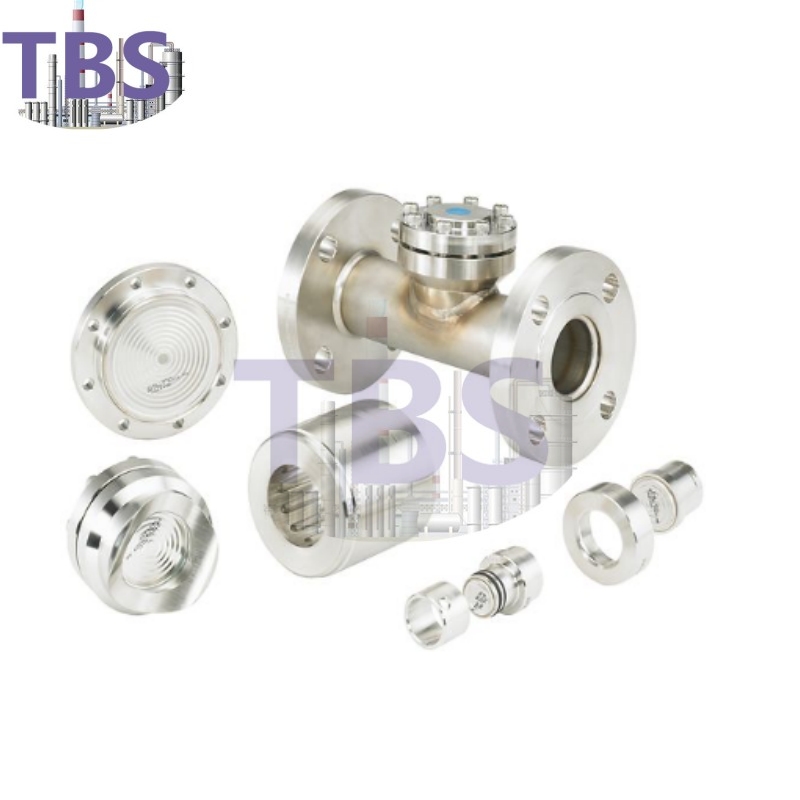

Rosemount 1199 Remote diaphragm Level transmitter A diaphragm seal system consists of a pressure transmitter, a diaphragm seal, a filling fluid, and a direct-mounted or capillary type connection. During operation, a thin elastic diaphragm and filling fluid isolate the pressure sensitive element of the transmitter from the process medium. Capillary tubes or directly mounted flanges connect the diaphragm to the transmitter.


measurement principle:


When the Rosemount 1199 remote diaphragm level transmitter operates, the isolation diaphragm and the filling fluid on the high and low pressure sides transfer process pressure to the filling fluid, which then transfers the pressure to the sensing diaphragm in the center of the sensor. The sensing diaphragm is a tensioning elastic element whose displacement varies with the pressure applied (for a GP gauge pressure transmitter, atmospheric pressure is applied as on the low pressure side of the sensing diaphragm). AP pressure transmitter, low pressure side always maintains a reference pressure. The maximum displacement of the sensing diaphragm is 0.004 inches (0.1 mm), and the displacement is proportional to the pressure. Capacitive plates on both sides detect the position of the sensing diaphragm. The difference in capacitance between the sensing diaphragm and the capacitor plate is converted to the corresponding current, voltage or digital HART (High Speed Addressable Remote Transmitter Data Highway) output signal.



Rosemount 1199 remote diaphragm level transmitter application range:


1, hot and cold temperature;

2, corrosion measurement occasions;

3, easy to block the process;

4. Occasions requiring cleanliness and hygiene.


The technical advantages of Rosemount 1199 remote diaphragm level transmitter:


1, similar products have excellent performance, accuracy up to 0.025%

The Rosemount Type 1199 transmitter with supermodule design delivers exceptional product performance. The SaturnTM sensor detection technology optimizes product performance and expands self-diagnostic capabilities.

2, a flow transmitter in the industry to provide flow percentage reading

The application's unique production technology and innovative folding meter design enable the super flowmeter to achieve a 10x performance improvement and a wide flow range ratio.

3, in the industry to achieve the first in the actual process conditions to maintain 10 stability

The supermodule and single electronic board wiring are housed in a fully welded vacuum sealed 316L stainless steel body, thus eliminating the effects of humidity and harsh on-site environments.

4, 12 years of product quality assurance, to achieve unprecedented reliability

The reliable supermodule design platform provides 12 years of quality assurance, which further enhances the installation performance and diagnostic capability of the instrument.

5. Super module design platform with variable specifications

Customized performance, functionality, diagnostics and process connectivity to meet your desired application needs provides a solution for complete pressure, flow and level measurement.

6, the diagnosis

The Rosemont 1199 HART and FF Field Bus meters provide intelligent field diagnostics for a robust plant control network, including design process monitoring (SPM), variable logging and selected process alerts, providing new process insights to prevent abnormal operating conditions.


Pressure transmitters with Rosemount 1199 remote diaphragm level transmitters are available:


The Rosemount Model 1199 remote diaphragm system offers a wide range of products and specifications to meet a wide range of measurement and application requirements. The Rosemount Model 1199 remote diaphragm can be assembled on Rosemount models 3051S, 3051, 1151 and 2088 differential, gauge and pressure transmitters and level transmitters.

1, Rosemount 3051S pressure transmitter

Pressure on a variable scale. Flow and level measurement solutions realize the application practice of installation and maintenance.

2, Rosemount 3051 pressure transmitter

Performance. Flexible common plane, platform stability guarantee for 5 years.

3, Rosemount 3095MV mass flow transmitter

Ground measurement of differential pressure, static pressure and process temperature, fully real-time compensation to calculate mass flow.

4, Rosemount 2051 pressure transmitter

Differential pressure. Reliable measurement of gauge and pressure or level from 0.5in H2O to 0-6000 psig.

5, Rosemount 2088 pressure transmitter

Flexible and compact pressure transmitter for measuring gauge and pressure from 1 to 4000Psi.
