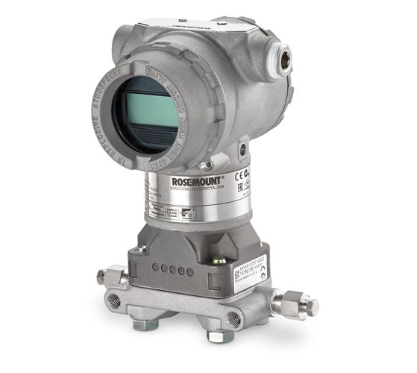

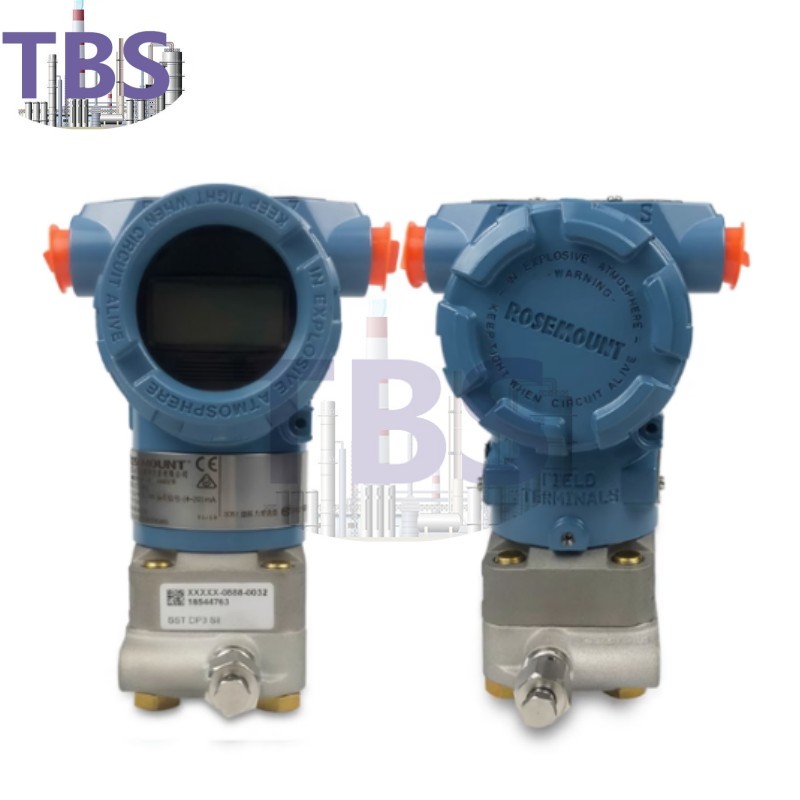

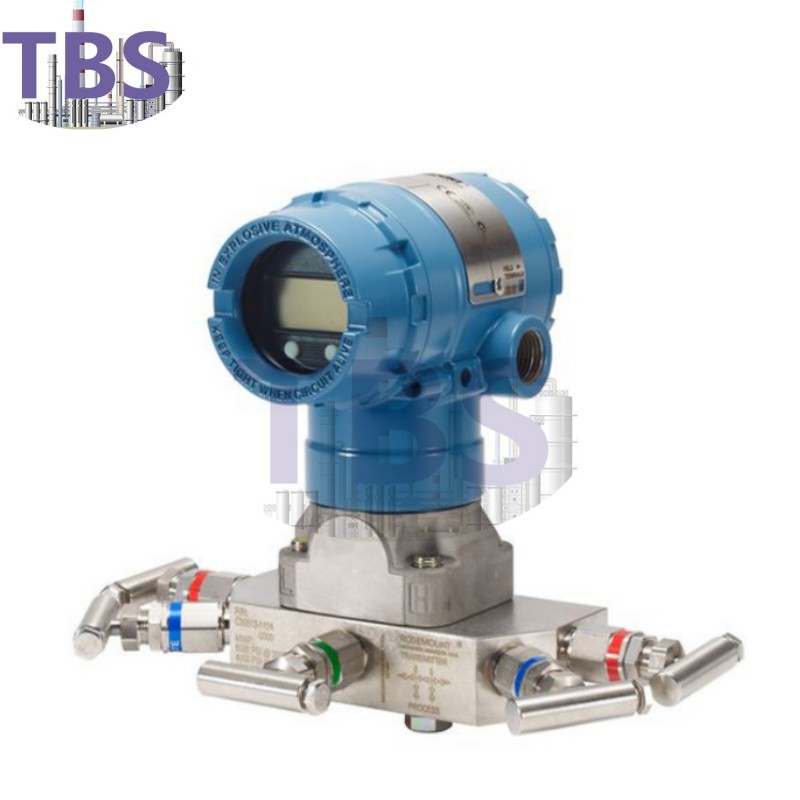

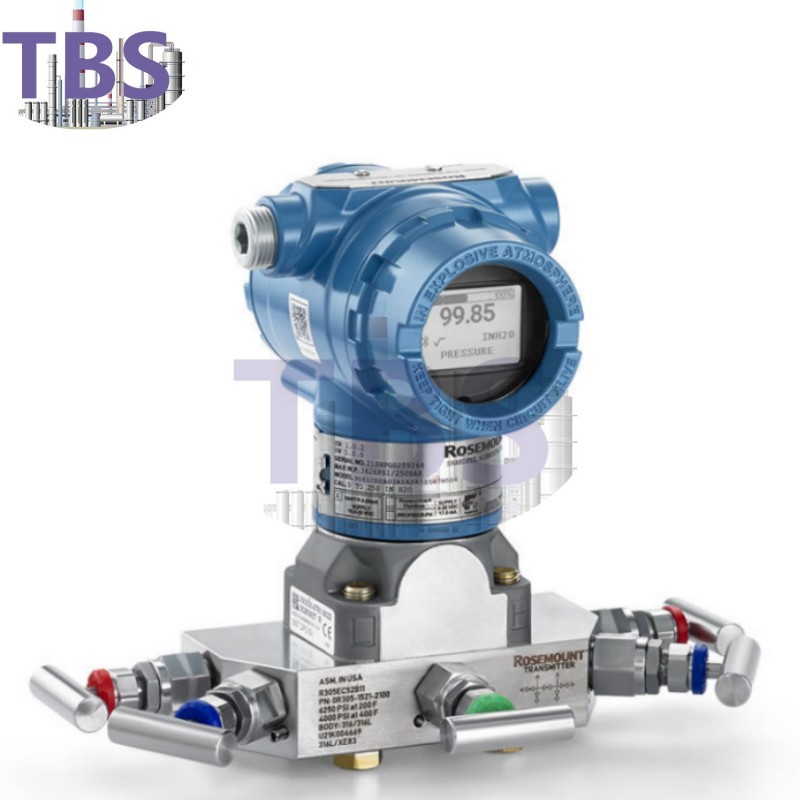

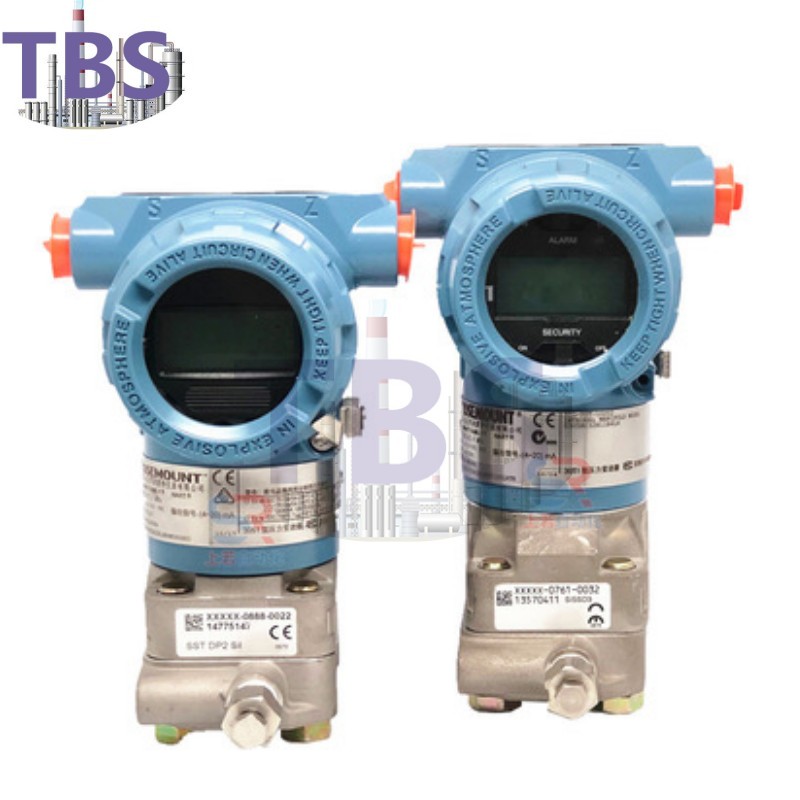

Rosemount 3051CD Series pressure transmitters
The design is small, strong and light, easy to install
Process isolation diaphragm: Stainless steel, Hastelloy C, Monel, Tantalum (CD, CG only) and gold plated Monel
It can ensure the accuracy and stability under different working conditions
Working principle
During operation, the isolation diaphragm and the filling fluid on the high and low pressure sides transmit the process pressure to the filling fluid, which then transfers the pressure to the sensing membrane in the center of the sensor. The sensing diaphragm is a tensioning elastic element whose displacement varies with the pressure applied (for a GP gauge pressure transmitter, atmospheric pressure is applied as on the low pressure side of the sensing diaphragm). AP absolute pressure transmitter, low pressure side always maintain a reference pressure. The maximum displacement of the sensing diaphragm is 0.004 inches (0.1 mm), and the displacement is proportional to the pressure. Capacitive plates on both sides detect the position of the sensing diaphragm. The difference in capacitance between the sensing diaphragm and the capacitor pad is converted to the corresponding current, voltage or digital HART(High Speed Addressable Remote Transmitter Data Highway) output signal.
Product characteristics
Rosemount's 3051C pressure transmitter sets a new standard for pressure measurement of osmosis. The Rosemount 3051 pressure transmitter offers unmatched operational performance, the flexible CoPlanarTM platform, and can be upgraded. The performance specifications of the new Rosemount 3051C pressuretransmitter guarantee accuracy and stability under different operating conditions.Apply
The performance specifications of the new Rosemount 3051C guarantee the accuracy and stability of the key under different operating conditions. The flexible CoPlanarTM platform design not only provides the best solution for your application needs, but also fully meets your future technical requirements through PlantWeb plant control network and fieldbus technology.
Specifications
Rangedown:Up to 150:1
Communication Protocol:4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART®
Measurement Range: Up to 2000 psi (137,89 bar) differential
Up to 2000 psig (137,89 bar) gage
Up to 4000 psia (275,79 bar) absolute
Process Wetted Material:316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400
Diagnostics:Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics
Certifications/Approvals:SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications
Wireless Update Rate:1 sec. to 60 min., user selectable
Power Module Life:Up to 10-year life, field replaceable (order separately)
Wireless Range:Internal antenna (225 m)
