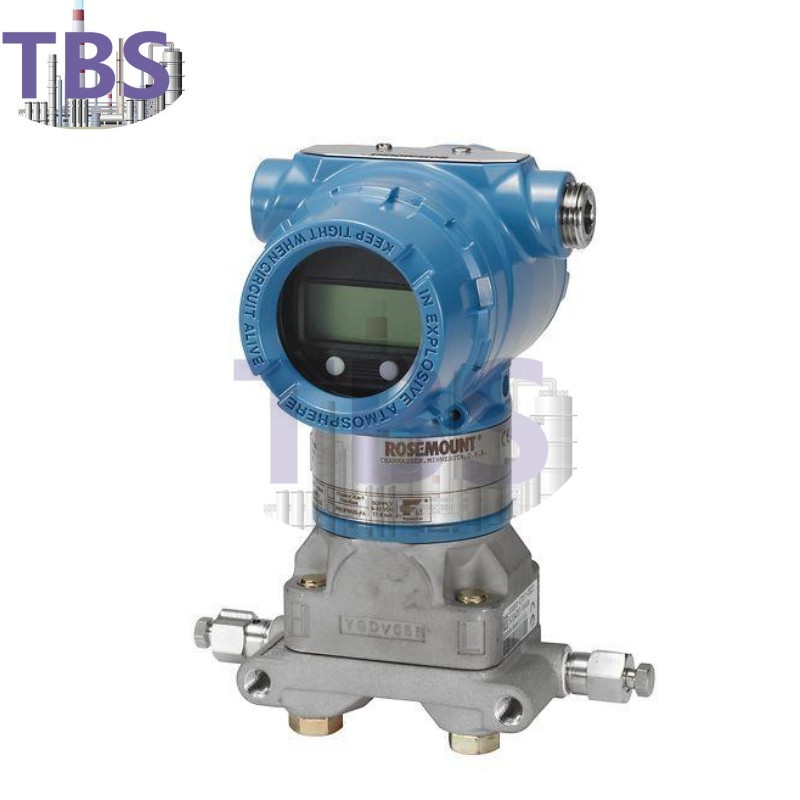

Rosemount 3051DP Differential Pressure Flow Transmitter

Rosemount 3051DP Differential Pressure Flow Transmitter


Ultra for Flow performance classes enables up to Up to ±0.04% of reading
200:1 rangedown produce reliable measurements and application flexibility

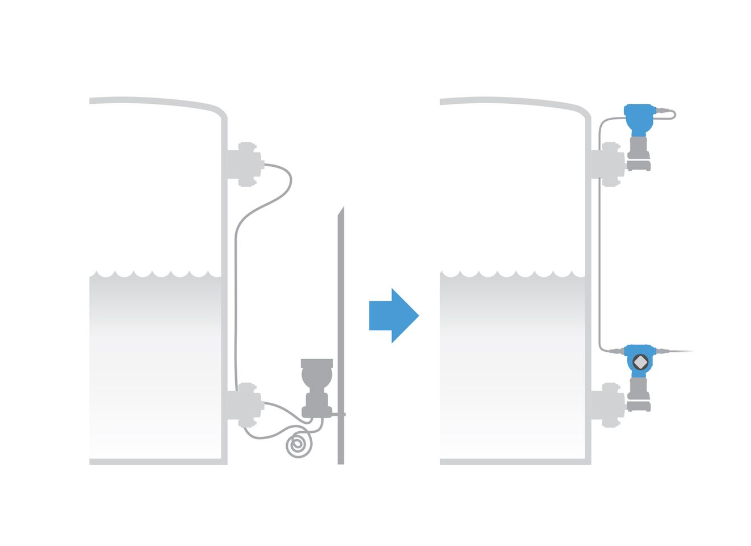

Remote display offers easy access to device display and loop connection
Primary elements can be pre-assembled to transmitter for an optimized, ready-to-install DP flow solution

Send Inquiry

Information


The Emerson Rosemount™ 3051 Differential Pressure Flow Transmitter is an industry-leading flow measurement solution that features optimal accuracy.

It can be pre-assembled to various primary elements, leak-tested and calibrated for cost-effective commissioning and quick installation which reduces leak points as well as increases process control & accuracy.

This flow transmitter is also engineered with power advisory diagnostics which detect electrical loop integrity issues to reduce downtime.

Product Benefits

  • Pre-assembled to primary elements for an installation-ready flow solution that ensures optimal performance.

  • Flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation.

  • 10-year installed stability with 150:1 rangedown produces reliable measurements and wide application flexibility.

  • A local operator interface offers easy-to-use menus & built-in configuration buttons for streamlined commissioning.

  • The loop integrity diagnostics detect electrical loop issues for reduced downtime.

  • SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations.

Specifications

output:

4-20 mA with digital signal based on HART Protocol; Low Power, 1-5 V dc with digital signal based on HART Protocol; Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional

range:

0-0.01 in H2O to 0-2000 psid

accuracy:

0-1: +/-0.1% of span

power:

4-20 mA: 10.5-55 V dc with no load Low Power: 6-12 V dc with no load

materials:

Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum

fluid:

Sensor fill fluid: Silicone, Inert (Halocarbon)

mounting:

Coplanar and Traditional flanges and Adapters: Cadmium and Nickel-plated CS, 316 SST
