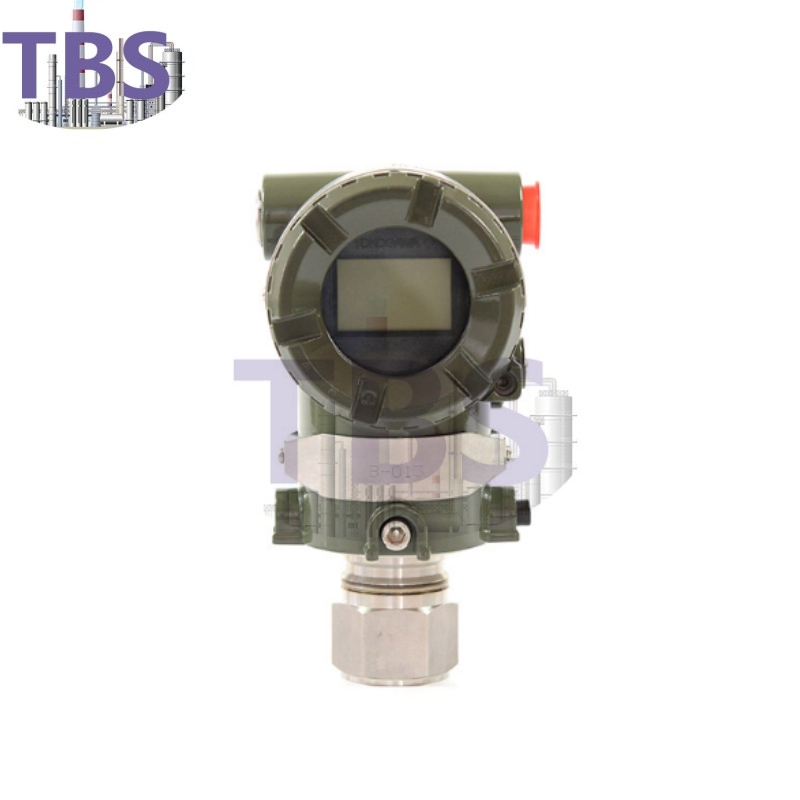

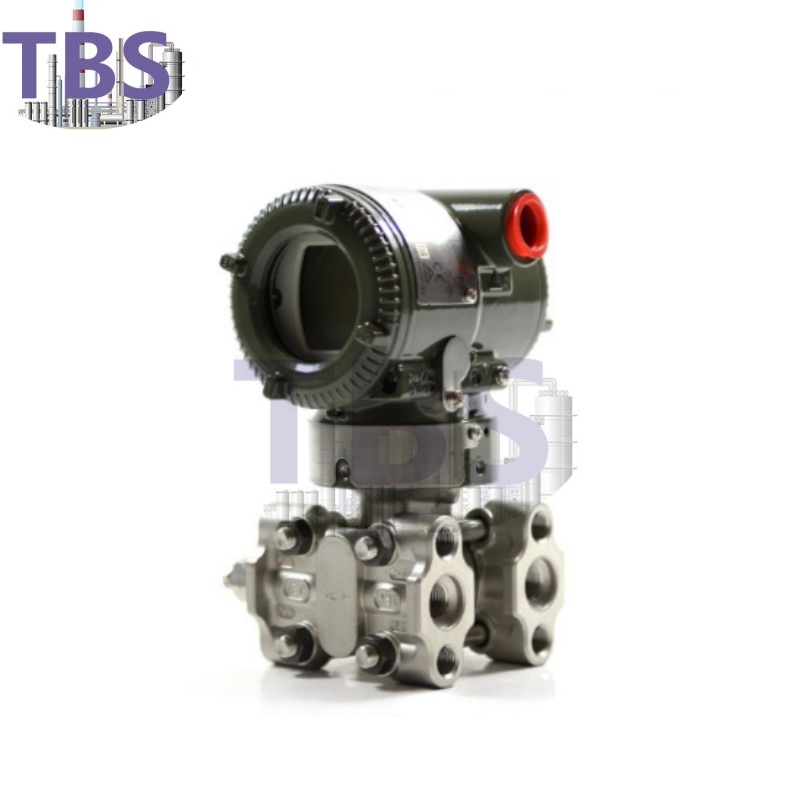

Yokogawa EJA510A Absolute PressureTransmitter

Yokogawa EJA510A Absolute PressureTransmitter


Environmental temperature: -40 ~ 85 ℃ (-40 ~ 248 ° F) -30 ~ 80 ℃ (-22 ~ 176 ° F)
Solid temperature: -40 ~ 120 ℃ (-40 ~ 248 ° F)
Environmental humidity: 5 ~ 100%RH@40 ℃ (104 ° F)
Power supply voltage and load resistance: The power supply voltage is 24VDC, promised to the maximum load 570Ω

Send Inquiry

Features

  • Excellent performance and stability

The EJA510A, EJA530A Absolute and Gauge Pressure Transmitters series uses a silicon resonant sensor formed from monocrystal silicon, a perfect material which has no hysteresis in pressure or temperature changes. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.

  • Compact and light-weight design

Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.

  • Fieldbus communication capability

Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor to the standard 4 to 20 mA analog communication used in most field instruments today.
EJA510A, EJA530A Absolute and Gauge Pressure Transmitters series offers two types of fieldbus models, FOUNDATION™ fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between Yokogawa and other manufactures. As for software, the EJA510A, EJA530A Absolute and Gauge Pressure Transmitters series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.

Specifications

EJA510A / EJA530A Direct Mount Type Absolute Pressure and Gauge Pressure Transmitter
(Measurement values below are in absolute for EJA510A)


A CapsuleB CapsuleC CapsuleD Capsule

Range0 to 200 kPa
(0 to 29 psi)
0 to 2 MPa
(0 to 290 psi)
0 to 10 MPa
(0 to 1450 psi)
0 to 50 MPa
(0 to 7200 psi)
Span10 to 200 kPa
(1.45 to 29 psi)
0.1 to 2 MPa
(14.5 to 290 psi)
0.5 to 10 MPa
(72.5 to 1450 psi)
5 to 50 MPa
(720 to 7200 psi)
Accuracy±0.2%±0.2%±0.2%±0.2%
Degrees of protectionIP67, NEMA 4X, and JIS C0920 immersion proof
CertificatesFM, CENELEC ATEX, CSA, IECEx
Output4 to 20 mA DC or FOUNDATION™ fieldbus or PROFIBUS PA 2-wire system with digital communication
Supply voltageBRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type)
Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model)
Ambient temperature-40 to 85 deg C (-40 to 185 deg F) (general use type)
-30 to 80 deg C (-22 to 176 deg F) (with integral indicator)
Process temperature-40 to 120 deg C (-40 to 248 deg F) (general use type)
Maximum overpressure4 MPa
(580 psi)
4 MPa
(580 psi)
20 MPa
(2900 psi)
60 MPa
(8500 psi)
MountingDirect Mounting/2-inch pipe mounting
Wetted parts materialCapsuleHastelloy C-276
Process
connection
SUS316L, Hastelloy C-276
HousingCast aluminum alloy or SUS316 equivalent stainless steel (optional)


The EJA-A series is Yokogawa’s most successful pressure transmitter line. First released in 1991, it continues to offer high performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it has a proven track record that makes it a true industry workhorse.
