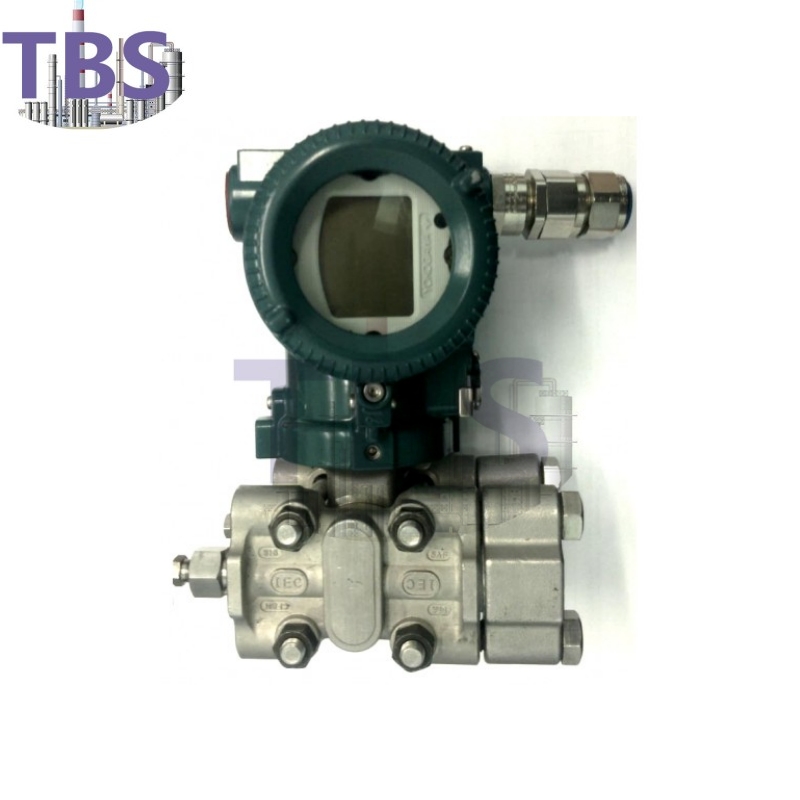

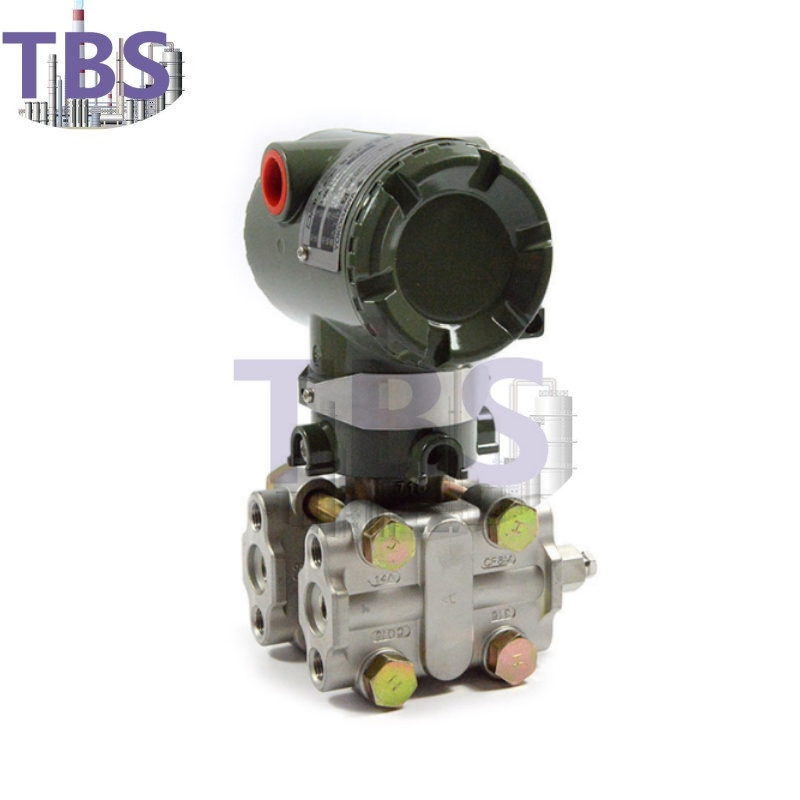

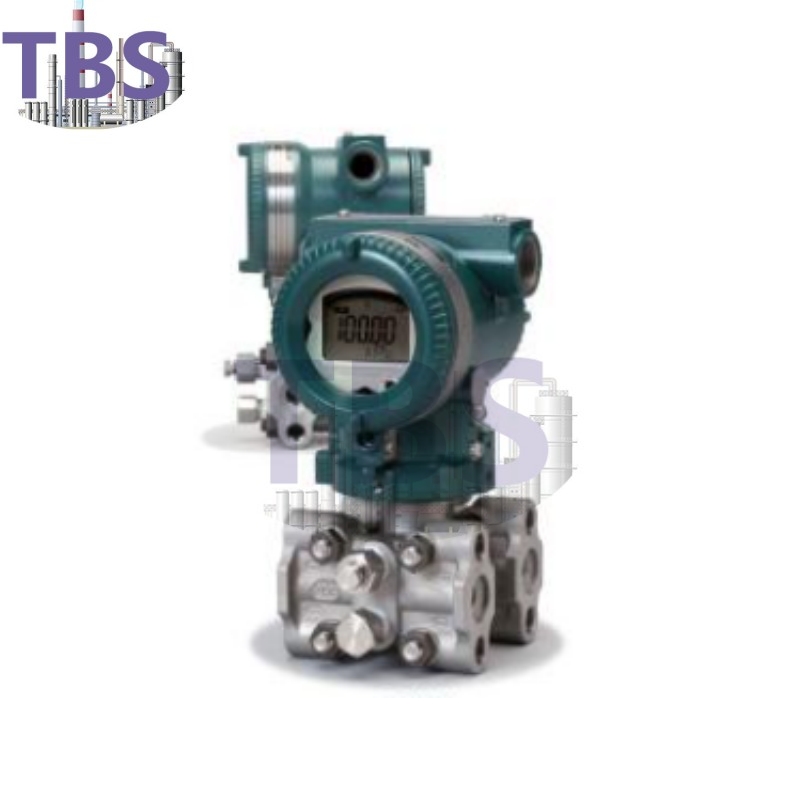

Yokogawa EJX110A Differential Pressure Transmitter
(
Signal output: 4-20mA HART digital communication protocol
(
Power supply: DC24V
(
Ambient temperature: -25-80°C
(
Liquid temperature: 1-40-120°C
(
Process isolation diaphragm: stainless steel, Hastelloy, Monel, non-ferrous metals, etc.
(
Connection mode: threaded connection Filling liquid: silicone oil and inert liquid
Main feature
Measurement accuracy: ±0.04%
Stability: ±0.04% upper range /60 months (M, H and V capsule)
Measuring range: 0.5KPa-14MPa
Zero adjustment: zero point in the range of the upper and lower limits of the diaphragm can be adjusted arbitrarily, the resolution is 0.01%, and the range can be adjusted with the setting switch of the watch head
Signal output: 4-20mA HART digital communication protocol
Power supply: DC24V
Ambient temperature: -25-80°C
Liquid temperature: 1-40-120°C
Process isolation diaphragm: stainless steel, Hastelloy, Monel, non-ferrous metals, etc.
Connection mode: threaded connection Filling liquid: silicone oil and inert liquid
Explosion-proof grade: flameproof; dⅡCT6: iaⅡCT4
Order notice: Customers need the manufacturer or our company to help select before ordering, if you want to obtain the selection table, please call for consultation.
EJX110A Specification Overview
Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.
Measurement Types | |
---|---|
Primary Variable | Differential Pressure |
Secondary Variable | Static Pressure |
Reference Accuracy | |
Primary Variable | ±0.04% of Span ±0.025% of Span available |
Secondary Variable | ±0.2% of Span |
Response Time | |
Primary Variable | 90 msec |
Secondary Variable | 360 msec |
Long Term Stability | |
Primary Variable | ±0.1% of URL per 15 years |
Over-pressure effect | |
Primary Variable | ±0.03% of URL |
Rangeability | |
Primary Variable | 200:1 |
Extended Calibration Intervals
Yokogawa's pressure transmitters have a long-term stability under all operational conditions. As you gain experience with these transmitters, you will be able to extend the time between calibration checks.
Quicker Maintenance = Less Downtime
